Overview

 Tyan B5652T88V24E2HR Intel Xeon DDR5-4800 2U Server Barebone



Specifications

Model Number:  B5652T88V24E2HR

Brand:   Tyan

Alt Part Number(s):    B5652T88V24E2HR

Product Type:  Server



Technical Description

Brand:  Tyan

Model:  B5652T88V24E2HR

Form Factor: 2U

Processor / Type: Xeon

Processor / Manufacturer: Intel

Processor / Max Supported Qty: 1

Mainboard / Chipset Type: Intel C741

RAM / Technology: DDR5

RAM / Total Slots Qty: 8

Hard Drive / Interface Type: Serial ATA

RAID Level: RAID 0, 1, 5, 10

Data Link Protocol: Gigabit Ethernet

Power / Device Type: Power Supply

Power / Provided (W): 1.3 KW

Power / Voltage Required: AC 100-127V / 200-240V

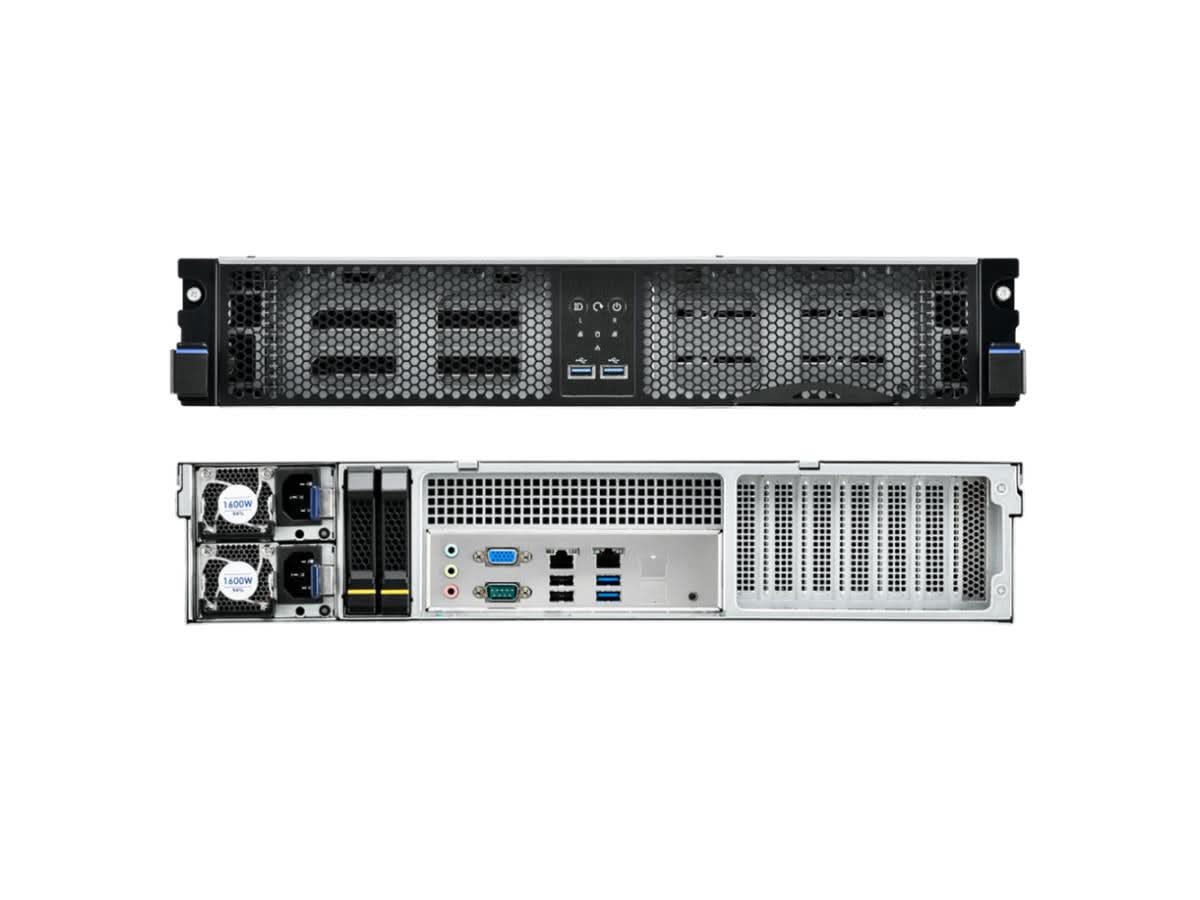

Interfaces & Connections:  1 × USB 2.0 Type-A, 2 × USB 2.0 ports, 1 × USB 3.0 header, 2 × USB 3.2 Gen1 ports, 1 × DB-9 COM port, 1 × D-Sub 15-pin port, 1 × GbE port, 1 × GbE dedicated for IPMI

Expansion Slots Total (Free): 1 × PCIe Gen5 x8 slot, 3 × PCIe Gen5 x16 slots, 1 × Broadcom 9560 16i

Features: 1S Intel Emerald Rapids / Sapphire Rapids CPU, 8 DIMM slots with DDR5-4800 memory support, 4 PCIe 5.0 slots



*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
