Overview

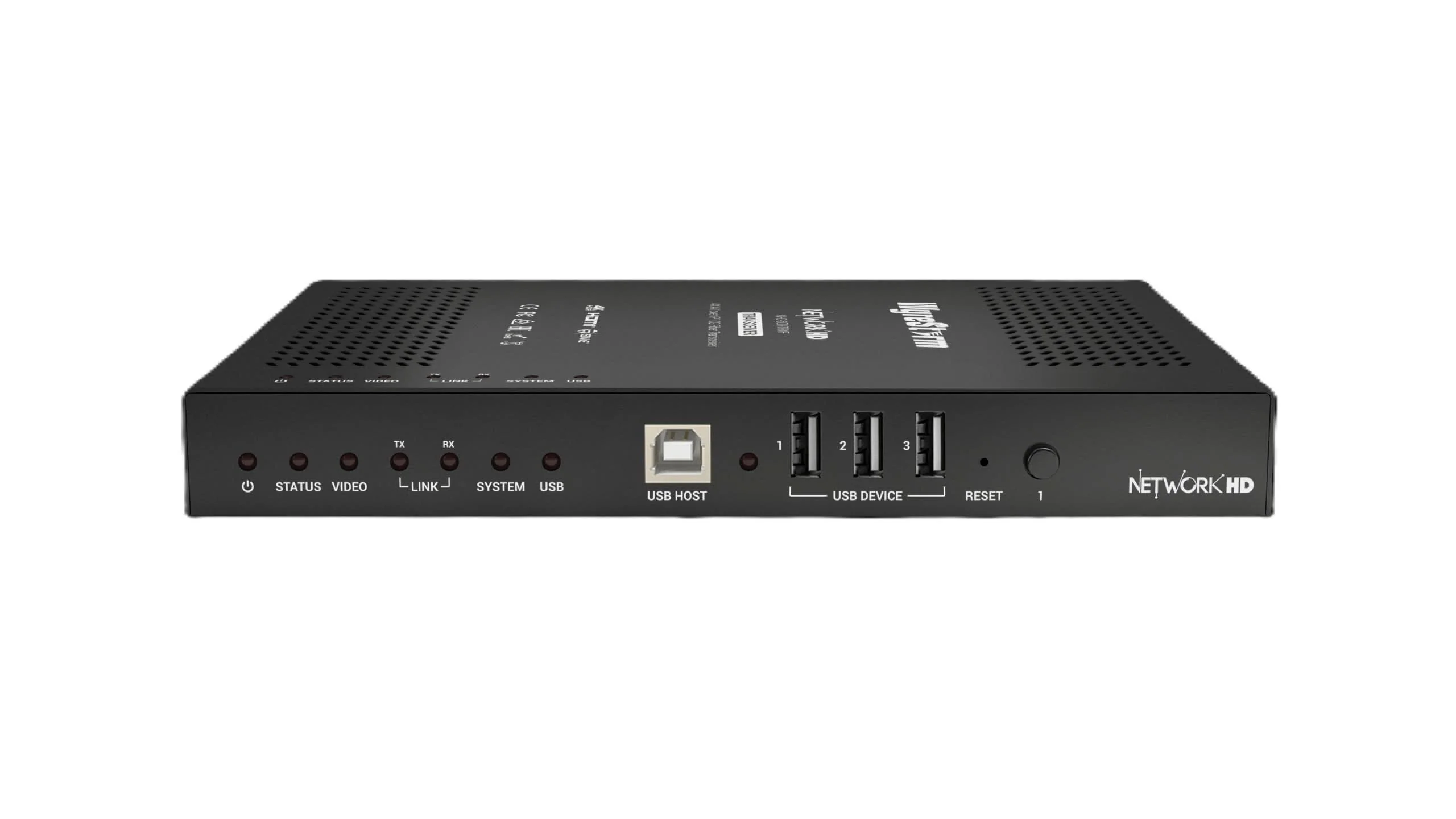

The WyreStorm NHD-600-TRXF is a 4K60 4:4:4 SDVoE fiber optic transceiver from the NetworkHD 600 Series. It is designed for mission-critical A/V over IP applications, such as command centers, medical facilities, and high-end corporate environments, where long-distance, lossless, and zero-latency video distribution is required.



Specifications

Model Number:  NHD-600-TRXF

Brand:  WyreStorm

Alt Part Number(s):  NHD-600-TRXF

Product Type:  Transceiver



Technical Description

Brand:  WyreStorm

Model:  NHD-600-TRXF

Series:  NetworkHD 600 Series

Video Encoding/Decoding:  SDVoE Pixel Pipeline

Encoding/Decoding:  1080p@60Hz 3.4Gbps 4K UHD@30Hz 4:4:4 8bit 4K UHD@60Hz

Inputs:   1x HDMI 2.0b Input 1x HDMI 2.0b

Outputs:   5-pin 1x10Gb/s SFP+10GBASE-SR: 300m 10km OS1/OS2 single-mode

HDMI:   HDCP 2.2, CEC

Ethernet:  1 x 1GbE LAN 8-pin

RS-232:  1x 3-pin Phoenix Connector 2 Way | Broadcast | Routed | API Programmable

IR:   1 x IR TX 3.5mm TS Mono Jack, 1x IR RX 3.5mm TRS Stereo Jack | API Programmable

USB:   3x USB 2.0 Type A, 1x USB 2.0 Type B Host, USB Bandwidth: 480Mbps

Power Supply: 12V 2A DC PSU

Max Power Consumption:  Max: 24w, Average: 10w
