Overview

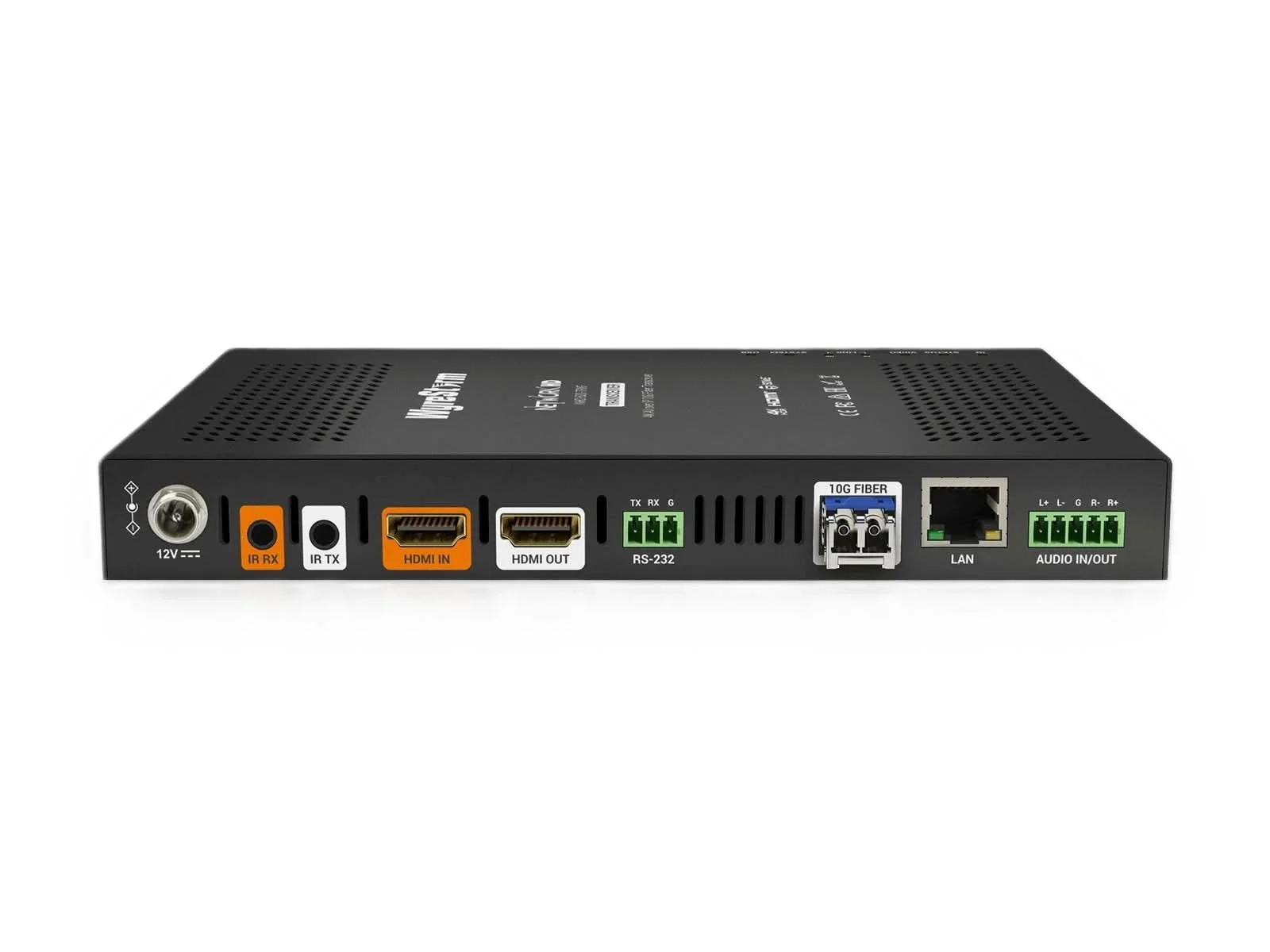

The WyreStorm NHD-600-TRX is a 4K60 4:4:4 10GbE SDVoE transceiver that provides lossless and latency-free audio/video (A/V) transmission over a 10 Gigabit Ethernet network. It can function as both a transmitter and a receiver, or simultaneously transmit and receive A/V through a single device.



Specifications

Model Number:  NHD-600-TRX

Brand:  WyreStorm

Alt Part Number(s): NHD-600-TRX

Product Type:  Transceiver



Technical Description

Brand:  WyreStorm

Model:  NHD-600-TRX

Series:  NetworkHD 600 Series

Video Resolution (Max):  4096x2160p @ 60Hz

Video Encoding/Decoding:  SDVoE Pixel Pipeline

Encoding/Decoding Data Rate:  1080p@60Hz 8bit – 3.4Gbps, 4K @30Hz 4:4:4 8bit

Inputs/Outputs:  1x HDMI 2.0b Input, 1x HDMI 2.0b Output, 1x5-pin 1x 10GbE 8-pin RJ45

HDMI:   HDCP 2.2, CEC

Ethernet:  1 x 1GbE LAN 8-pin

RS-232:  1x 3-pin Phoenix Connector

IR:   1 x IR TX 3.5mm TS Mono Jack

USB:   3 x USB 1.1 Type A, 1 x USB 1.1 Type B Host

Power Supply:  12V 2A DC PSU

Max Power Consumption:  Max: 24w
