Overview

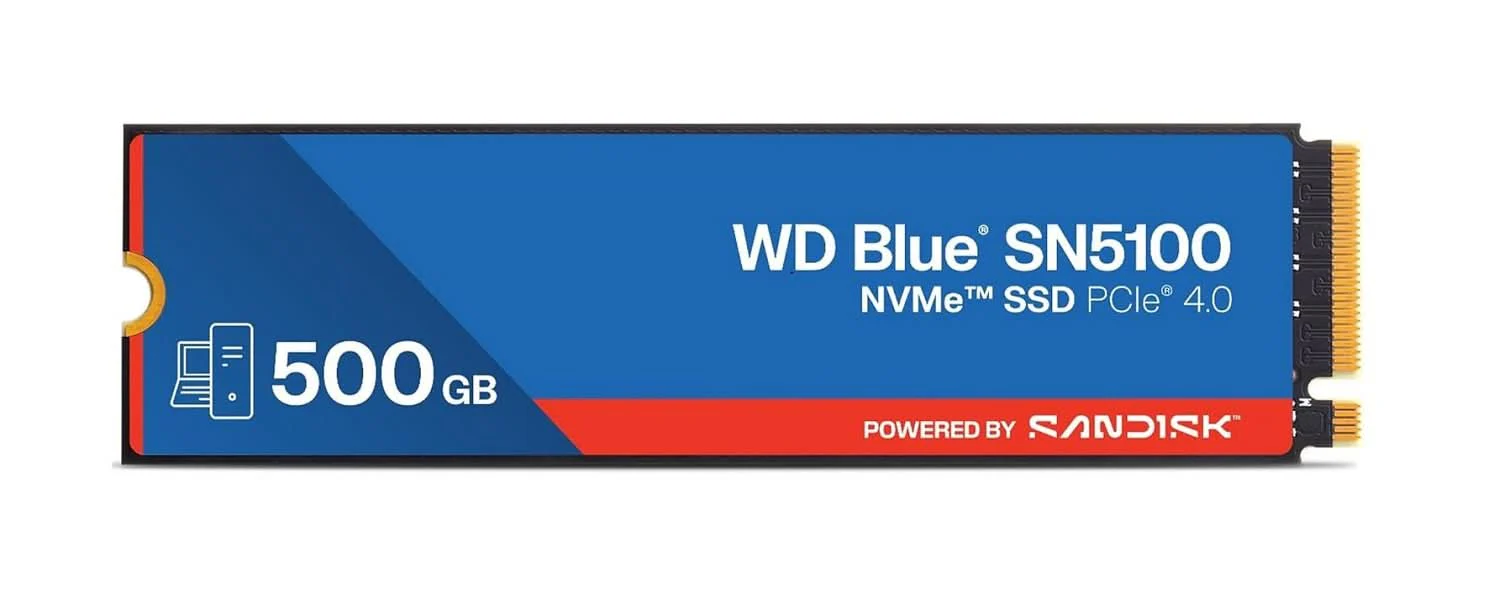

Western Digital WDS500G5B0E Blue SN5100 Series delivers 500GB of fast storage with PCIe Gen 4.0 x4 NVMe M.2 2280 interface achieving up to 6600 MB/s read and 5600 MB/s write speeds. It features up to 1.1M IOPS random write, 300TB endurance, advanced security with TCG Pyrite 2.01 support, and efficient 3.8W power performance in a durable shock resistant design.



Specifications

Model Number: WDS500G5B0E

Brand:   Western Digital

Alt Part Number(s):   WDS500G5B0E

Product Type:  Solid State Drive



Technical Description

Brand:  Western Digital

Model: WDS500G5B0E

Capacities: 500GB

Form Factor: M.2 2280

Interface: PCIe Gen 4.0 x4; NVMe

NAND Type: SANDISK QLC 3D CBA NAND

Sequential Read 1MB (up to): 6,600 MB/s

Sequential Write 1MB (up to): 5,600 MB/s

Random Read 4KB (up to): 660,000 IOPS

Random Write 4KB (up to): 1,100,000 IOPS

Average Power - Read: 3.8W

Average Power - Write: 3.8W

Idle (Sleep): 4mW

Endurance (TBW): 300TB

MTTF (hours): 1,750,000 hours

Operating Temperature: 0°C to 85°C

Non-Operating Temperature: -40°C to 85°C

Operating Vibration: 5 gRMS; 10-2000 Hz; 3 axes

Non-Operating Vibration: 4.9 gRMS; 7-800 Hz; 3 axes

Shock: 1,500G @ 0.5 ms half-sine

Certifications: BSMI; CAN ICES-3(B)/NMB-3(B); CB-Scheme; CE; FCC; KCC; Morocco; RCM; TÜV; UL; VCCI; UKCA

RoHS Compliant: Yes

Security: TCG Pyrite 2.01; ATA Security passthrough over NVMe
