Overview

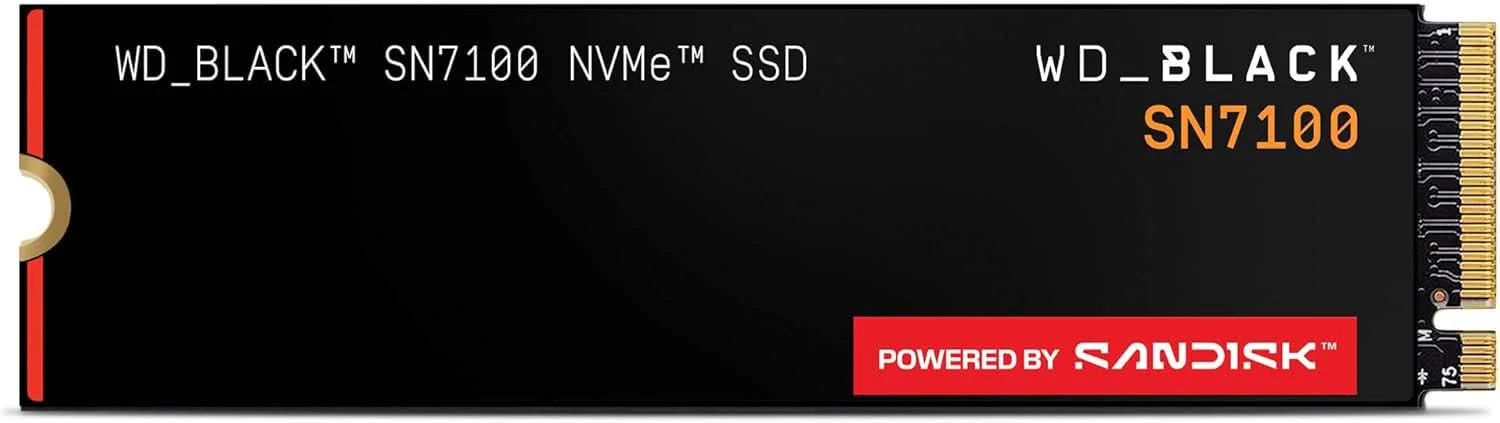

Western Digital WDS500G4X0E Black SN7100 Series delivers 500GB of high performance storage with PCIe Gen 4x4 NVMe M.2 2280 interface reaching up to 6800 MB/s read and 5800 MB/s write speeds. It features 760,000 IOPS random read, 1.2M IOPS random write, 300TB endurance, and is compatible with a wide range of PCIe generations in a compact 5.8 g internal form factor.



Specifications

Model Number: WDS500G4X0E

Brand:   Western Digital

Alt Part Number(s):   WDS500G4X0E

Product Type:  Solid State Drive



Technical Description

Brand:  Western Digital

Model: WDS500G4X0E

Capacity: 500GB

Interface: PCIe Gen 4x4 NVMe

NAND: Western Digital TLC 3D NAND

Sequential Read (up to): 6,800 MB/s

Sequential Write (up to): 5,800 MB/s

Random Read (up to): 760,000 IOPS

Random Write (up to): 1,200,000 IOPS

Endurance (TBW): 300TB

Dimensions: 80mm x 22mm x 2.38mm

Weight: 5.8 g

System Compatibility: Backwards compatible with PCIe Gen4 x2; PCIe Gen4 x1; PCIe Gen3 x4; PCIe Gen3 x2; PCIe Gen3 x1; PCIe Gen2 x4; PCIe Gen2 x2; PCIe Gen2 x1; Windows 10+

RoHS Compliance: Yes

Operating Temperature: 0°C to 85°C

Non-Operating Temperature: -40°C to 85°C
