Overview

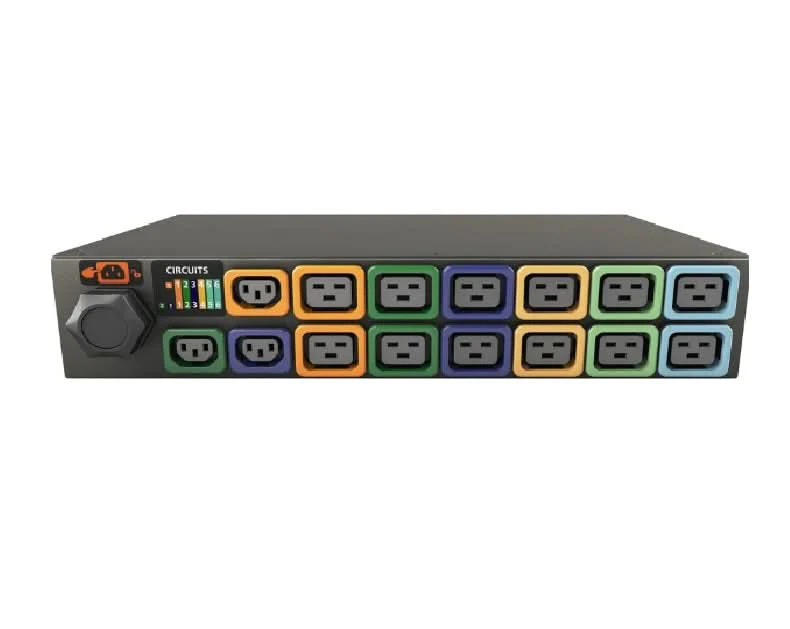

The MN01XDR1-15P3B8-6PS15B0H10-S (Manufacturer Part Number: I10020L) is a Vertiv Geist Basic Upgradeable horizontal rack Power Distribution Unit (rPDU). It is designed to provide high-density power distribution for critical IT equipment in data centers and enterprise network closets.



Specifications

Model Number:  MN01XDR1-15P3B8-6PS15B0H10-S

Brand:  Vertiv

Alt Part Number(s):  I10129L

Product Type:  Power Distribution Unit

Technical Description

Brand:  Vertiv

Model Number:  MN01XDR1-15P3B8-6PS15B0H10-S

Series:  rPDU

Phase:  3-Phase

Input Current:  60A

Input Voltage:  230 V AC

Input Plug:  NEMA L21-30P

Output Connector type:  12 × U-Lock IEC 60320 C19, 3 × U-Lock IEC 60320 C13

Output Voltage:  208 V AC

Cord Length:  10ft

Power Capacity:  17.2 kW

Protection Type:  Circuit breaker

From Factor:  2U Rackmount

Height:  3.4"

Width:  17"

Depth:  12"

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
