Overview

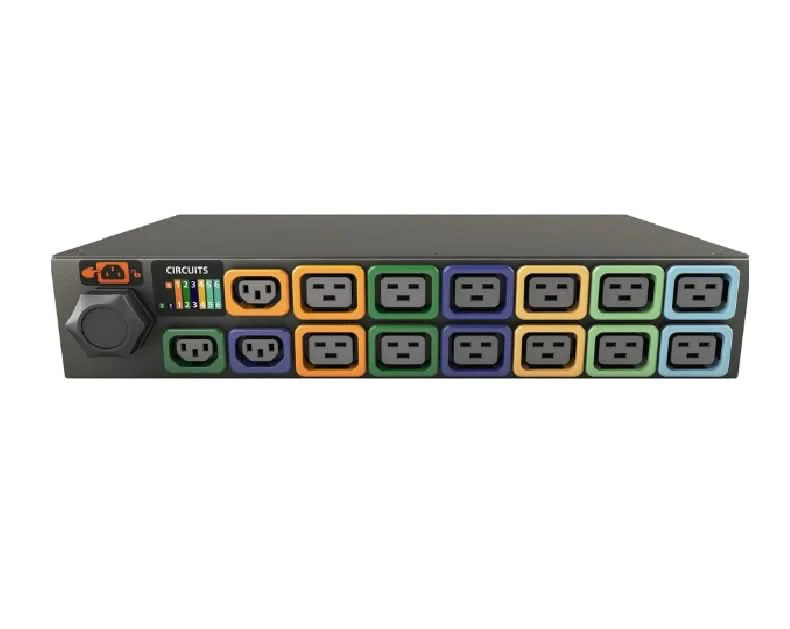

The Vertiv Geist MN01XDR1-15P3B8-5CS15A0H10-S (Part Number: I10019L) is a basic, upgradeable rack power distribution unit (rPDU) designed for three-phase power environments. It provides essential power distribution for high-density IT equipment and features a modular design that allows for future monitoring upgrades without service interruption.



Specifications

Model Number:  MN01XDR1-15P3B8-5CS15A0H10-S

Brand:  Vertiv

Alt Part Number(s):  I10019L

Product Type:  Power Distribution Unit

Technical Description

Brand:  Vertiv

Model Number:  MN01XDR1-15P3B8-5CS15A0H10-S

Series:  rPDU

Phase:  3-Phase

Input Current:  50A

Input Voltage:  208 V AC

Input Plug:  NEMA L5-20P

Output Connector type:  12 × U-Lock IEC 60320 C19, 3 × U-Lock IEC 60320 C13

Output Voltage:  208 V AC

Cord Length:  10ft

Power Capacity:  14.4 kW

Protection Type:  Circuit breaker

From Factor:  2U Rackmount

Height:  66.3"

Width:  1.6"

Depth:  1.6"

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
