Overview

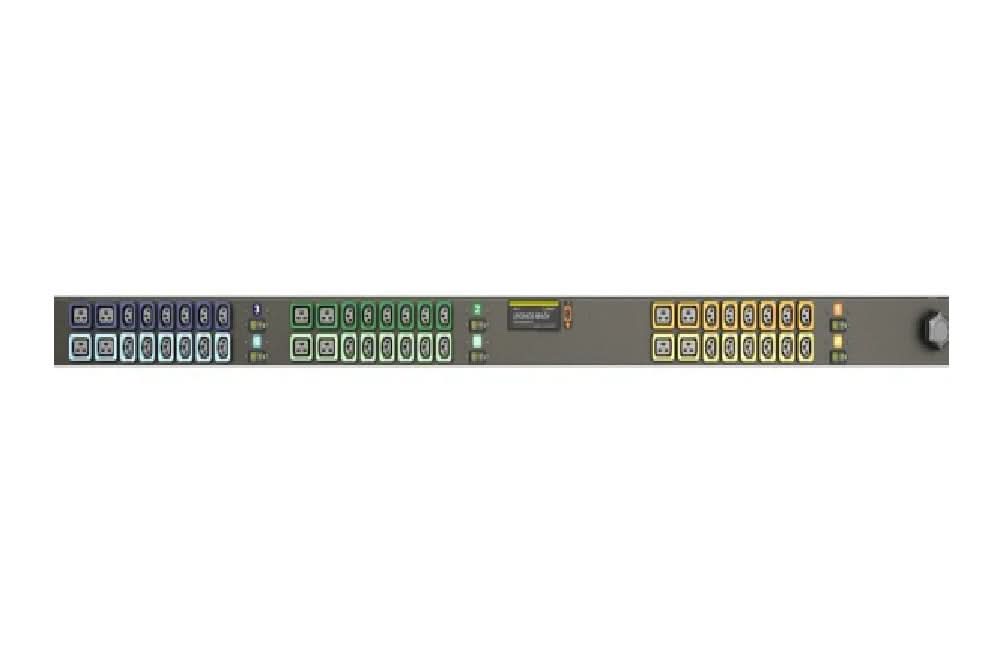

The Vertiv Geist MN01X9W1-48PZB8-6PS15D0A10-S (Part Number I10049L) is a basic, vertical (0U) rack Power Distribution Unit (rPDU) designed for high-density, three-phase power delivery in data centres. As part of the Geist Upgradeable series, it provides a cost-effective power solution with a modular design that supports future intelligence upgrades without power interruption.



Specifications

Model Number:  MN01X9W1-48PZB8-6PS15D0A10-S

Brand:  Vertiv

Alt Part Number(s):  I10049L

Product Type:  Power Distribution Unit

Technical Description

Brand:  Vertiv

Model Number:  MN01X9W1-48PZB8-6PS15D0A10-S

Series:  rPDU

Phase:  3-Phase

Input Current:  60A

Input Voltage:  230 V AC

Input Plug:  NEMA L21-30P

Output Connector type:  36 × U‑Lock IEC 60320 C13, 12 × U‑Lock IEC 60320 C19

Output Voltage:  208 V AC

Cord Length:  10ft

Power Capacity:  17.2 kW

Protection Type:  Circuit breaker

From Factor:  0U Rackmount

Height:  72"

Width:  3.75"

Depth:  3.44"

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
