Overview

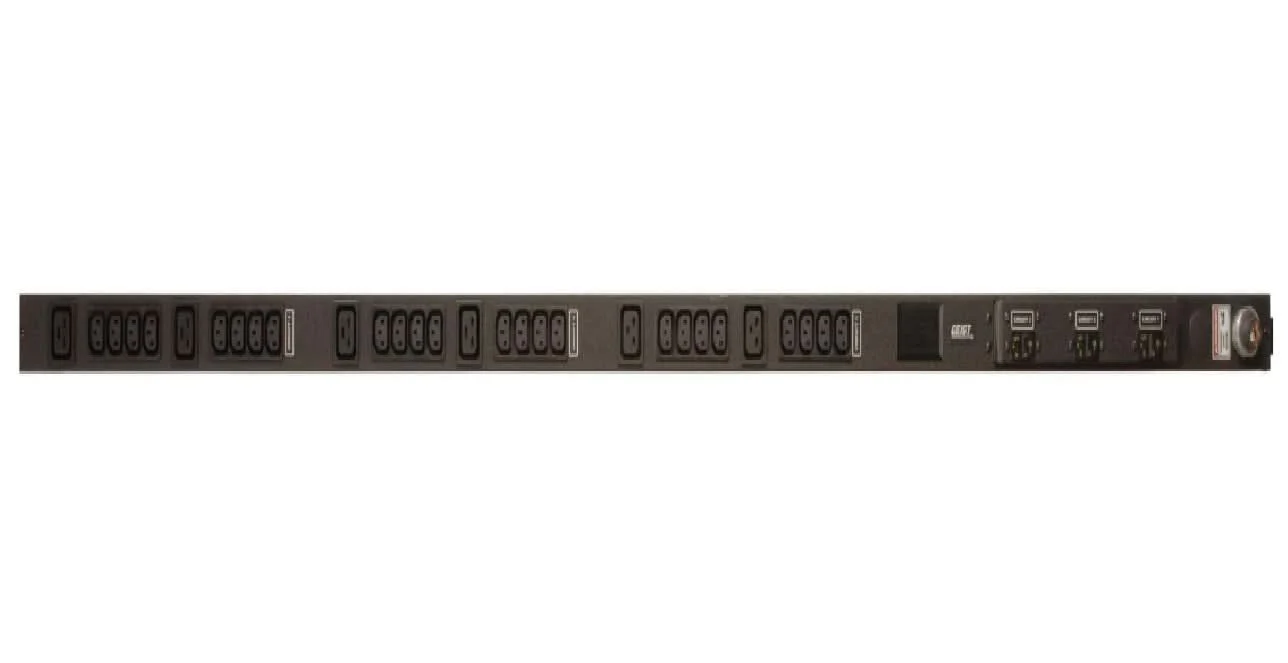

The Vertiv Geist MN01X4W1-30PN68-4CS15A0A10-S (Model Number I10009L) is a basic, vertical (0U) rack Power Distribution Unit (rPDU) designed for reliable, high-capacity, three-phase power distribution in data centres.



Specifications

Model Number:  MN01X4W1-30PN68-4CS15A0A10-S

Brand:  Vertiv

Alt Part Number(s):  I10129L

Product Type:  Power Distribution Unit

Technical Description

Brand:  Vertiv

Model Number:  MN01X4W1-30PN68-4CS15A0A10-S

Series:  rPDU

Phase:  3-Phase

Input Current:  60A

Input Voltage:  120/208 V

Input Plug:  NEMA L21-30P

Output Connector type:  12 × U-Lock IEC 60320 C13, 12 × U-Lock IEC 60320 C19

Output Voltage:  208 V AC

Cord Length:  10ft

Power Capacity:  17.2 kW

Protection Type:  Circuit breaker

From Factor:  0U Rackmount

Height:  66.3"

Width:  1.6"

Depth:  1.6"
