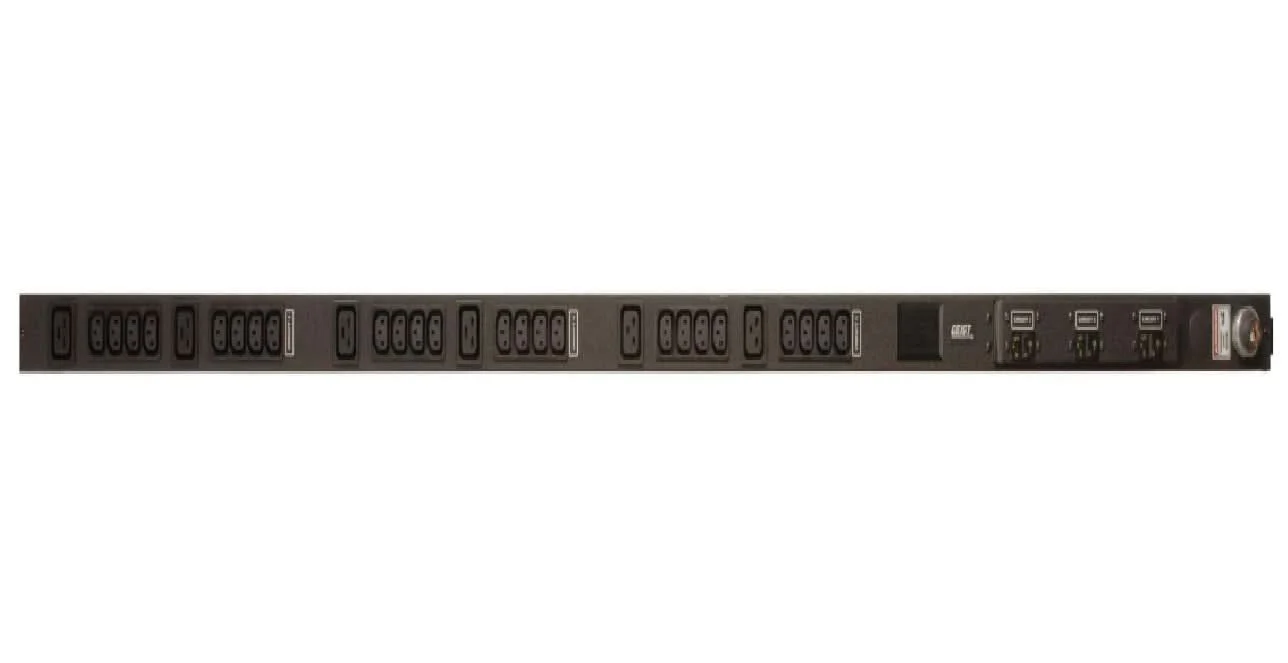

Vertiv MN01X4W1-30PN63-3TL56A0A10-S-A/ I10130L 30-Outlets PDU
Overview
The Vertiv Geist MN01X4W1-30PN63-3TL56A0A10-S-A (often referenced by SKU I10130L) is a high-density, 3-Phase, 0U vertical rackmount Basic Power Distribution Unit (PDU) designed for data centers and server rooms. It is part of the Geist Upgradeable series, allowing for future monitoring upgrades without replacing the unit.
Specifications
Model Number: MN01X4W1-30PN63-3TL56A0A10-S-A
Brand: Vertiv
Alt Part Number(s): I10130L
Product Type: Power Distribution Unit
Technical Description
Brand: Vertiv
Model Number: MN01X4W1-30PN63-3TL56A0A10-S-A
Series: rPDU
Phase: 3-Phase
Input Current: 30A
Input Voltage: 230 V AC
Input Plug: NEMA L21-30P
Frequency: 50/60 Hz
Output Connector type: 24 × U‑Lock IEC 60320 C13, 6 × U‑Lock IEC 60320 C19
Output Voltage: 208 V AC
Cord Length: 10ft
Power Capacity: 16.6 kW
Protection Type: Circuit breaker
From Factor: 0U Rackmount
Height: 72"
Width: 2"
Depth: 2.3"
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
Overview
The Vertiv Geist MN01X4W1-30PN63-3TL56A0A10-S-A (often referenced by SKU I10130L) is a high-density, 3-Phase, 0U vertical rackmount Basic Power Distribution Unit (PDU) designed for data centers and server rooms. It is part of the Geist Upgradeable series, allowing for future monitoring upgrades without replacing the unit.
Specifications
Model Number: MN01X4W1-30PN63-3TL56A0A10-S-A
Brand: Vertiv
Alt Part Number(s): I10130L
Product Type: Power Distribution Unit
Technical Description
Brand: Vertiv
Model Number: MN01X4W1-30PN63-3TL56A0A10-S-A
Series: rPDU
Phase: 3-Phase
Input Current: 30A
Input Voltage: 230 V AC
Input Plug: NEMA L21-30P
Frequency: 50/60 Hz
Output Connector type: 24 × U‑Lock IEC 60320 C13, 6 × U‑Lock IEC 60320 C19
Output Voltage: 208 V AC
Cord Length: 10ft
Power Capacity: 16.6 kW
Protection Type: Circuit breaker
From Factor: 0U Rackmount
Height: 72"
Width: 2"
Depth: 2.3"
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
Original: $918.70
-70%$918.70
$275.61Description
