Overview

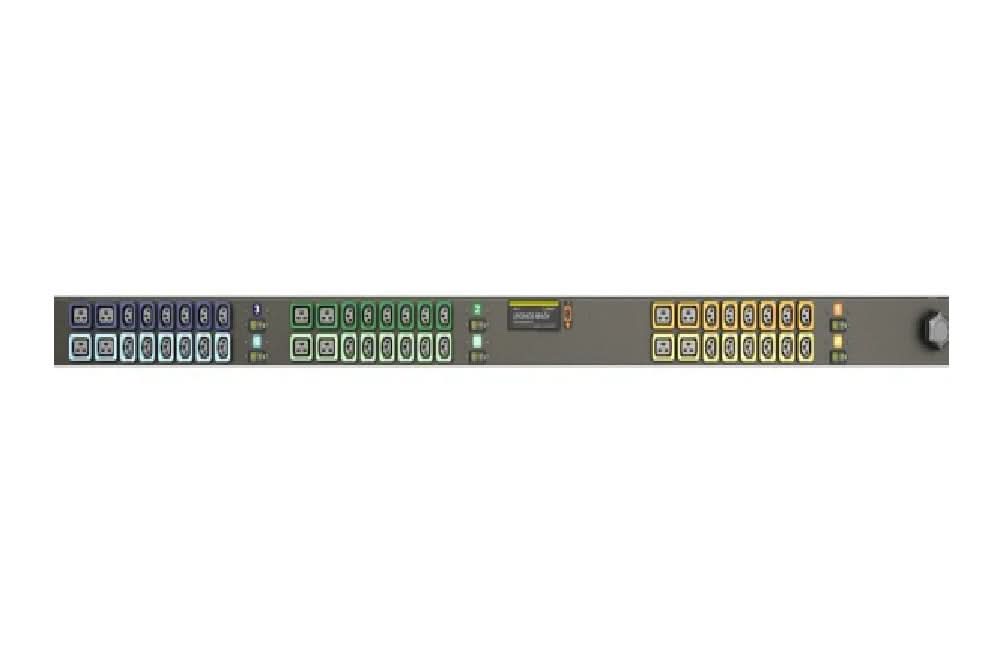

The Vertiv Geist MN01D9W1-48L138-6PS15B0A10-S (also identified by alternative part number I10074L) is a metered, vertical 0U rack PDU. It is designed to provide real-time power monitoring to help data center managers prevent overloads and optimize load levels.



Specifications

Model Number:  MN01D9W1-48L138-6PS15B0A10-S

Brand:  Vertiv

Alt Part Number(s):  I10078L

Product Type:  Power Distribution Unit

Technical Description

Brand:  Vertiv

Model Number:  MN01D9W1-48L138-6PS15B0A10-S

Series:  rPDU

Phase:  3-Phase

Input Current:  60A

Input Voltage:  230 V AC

Input Plug:  NEMA L21-30P

Output Connector type:  48 × U-Lock IEC 60320 C13

Output Voltage:  208 V AC

Cord Length:  10ft

Power Capacity:  17.20 kW

Protection Type:  Circuit breaker

From Factor:  0U Rackmount

Height:  72"

Width:  3.8"

Depth:  3.4"
