Overview

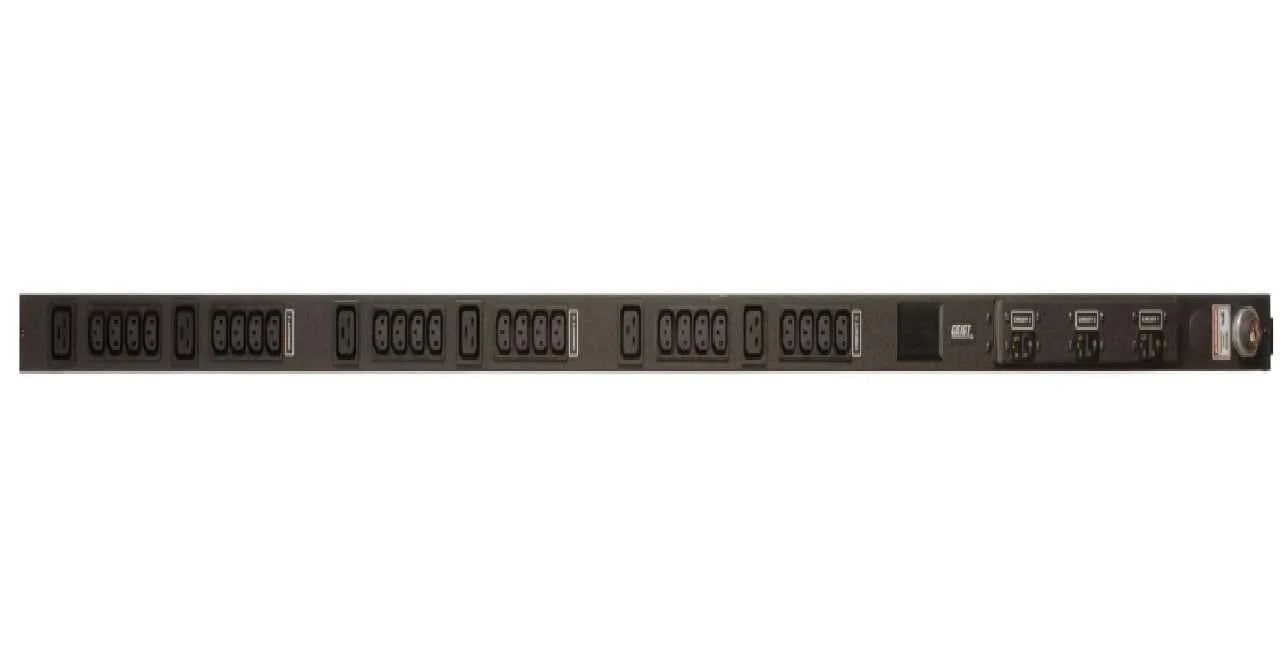

The Vertiv Geist MN01D4W1-30PN68-4CS15A0A10-S-A (also identified by manufacturer part number I10062L) is a metered, upgradeable rack power distribution unit (rPDU) designed for three-phase power environments. It provides high-density power distribution with real-time local monitoring to prevent circuit overloads in data center racks.



Specifications

Model Number:  MN01D4W1-30PN68-4CS15A0A10-S-A

Brand:  Vertiv

Alt Part Number(s):  I10140L

Product Type:  Power Distribution Unit

Technical Description

Brand:  Vertiv

Model Number:  MN01D4W1-30PN68-4CS15A0A10-S-A

Phase:  3- Phase

Input Current:  35A

Input Voltage:  230 V AC

Input Plug:  NEMA L5-20P

Output Connector type:  24 x U-Lock IEC 60320 C13, 6 x U-Lock IEC 60320 C19

Output Voltage:  208 V AC

Cord Length:  10ft

Power Capacity:  10 kW

Protection Type:  Circuit breaker

From Factor:  0U Rackmount

Height:  7.2"

Width:  2"

Depth:  2"

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
