Overview

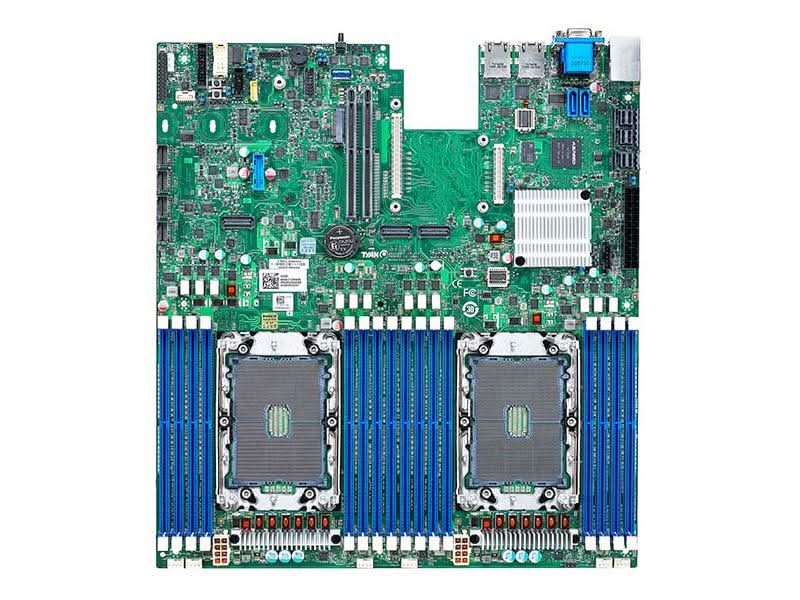

Tyan S7126GM2NRE Dual Processor Intel Gen3 Xeon LGA4189 Server Board



Specifications

Model Number: S7126GM2NRE

Brand:  Tyan

Alt Part Number(s):  S7126GM2NRE

Product Type:  Server



Technical Description

Brand:  Tyan

Model: S7126GM2NRE

Processor Type: Xeon

Processor Manufacturer: Intel

Chipset: Intel C621A

RAM Technology: DDR4

Drive Interface: PCI Express x4

Expansion Slots: 2 x PCIe Gen3/Gen4 x32, 1 x PCIe Gen3 x16 OCP 2.0 (conn.A + conn.B)

Interfaces & Connections:

• USB: 1 x USB 3.0 (via cable), 2 x USB 3.0

• COM: 1 x DB-9

• VGA: 1 x D-Sub 15-pin

• LAN: 2 x GbE + 1 x GbE for IPMI

• Storage: 2 x SATA III, 3 x Mini-SAS HD (4-in-1)

• Power: SSI 24-pin + dual 8-pin

• Other: 1 x ID button

RoHS Compliant: Yes



Boost your enterprise performance with the Tyan S7126GM2NRE Dual Processor Intel Gen3 Xeon LGA4189 Server Board -ORDER TODAY!

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
