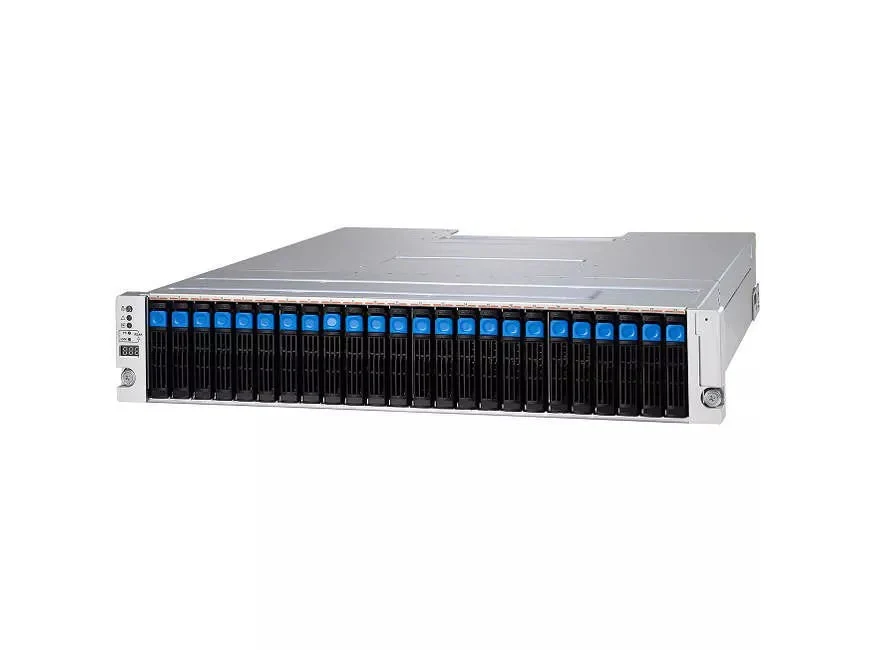

The Tyan J3252T52U24HR-U8DR Drive Enclosure is a 2U rackmount storage expansion chassis designed to add large amounts of SAS/SATA storage capacity to a server or storage array. It does not contain a server motherboard, CPU, or operating system — it is purely a drive enclosure/backplane unit that connects to a host system via external SAS links.



Specifications

Model Number:  J3252T52U24HR-U8DR

Brand:  Tyan

Alt Part Number(s):  J3252T52U24HR-U8DR

Product Type:  Drive Enclosure

Technical Description

Brand:  Tyan

Model Number:  J3252T52U24HR-U8DR

Chassis Model:  TN52J‑E3252

Host Interface:  12Gbps SAS External mini‑SAS

Controller Type:  Non-RAID, operating in JBOD mode

Drive Bays:  24 × 2.5″ hot‑swap bays HDD/SSD

Cooling:  Included internal fans for drive cooling

Power Supply:  (1+1) Redundant 580W PSU 80+ Platinum

Form Factor:  2U Rackmount

Height:  3.4"

Width:  17.6"

Depth:  20.2"
