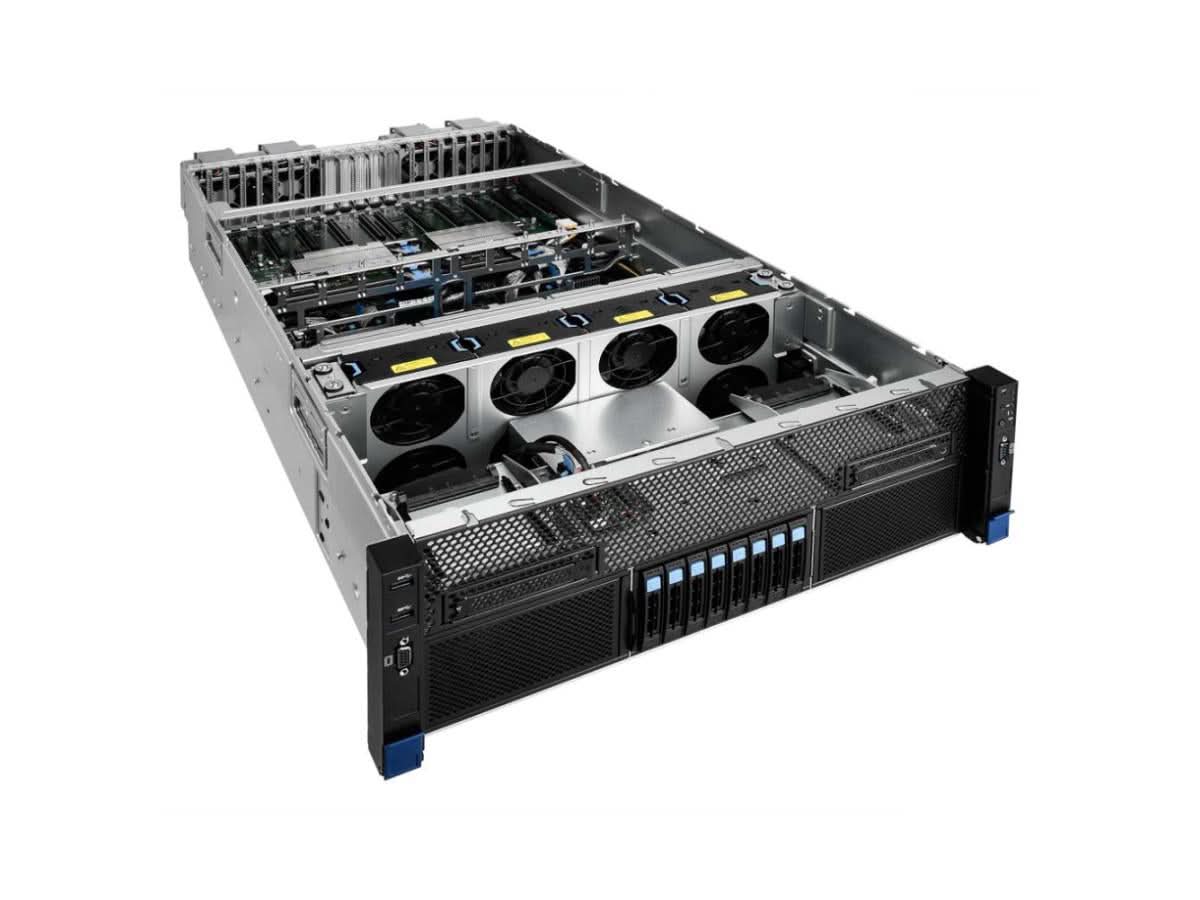

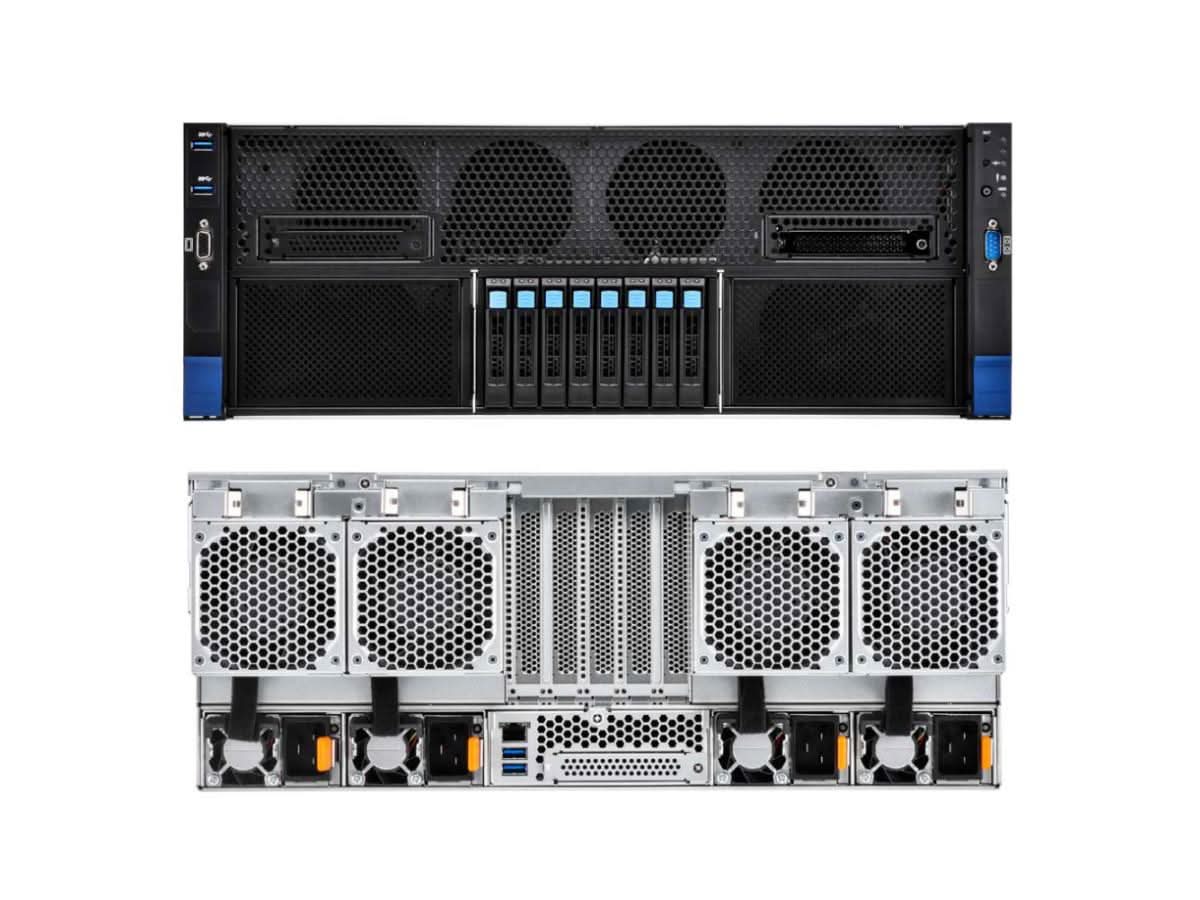

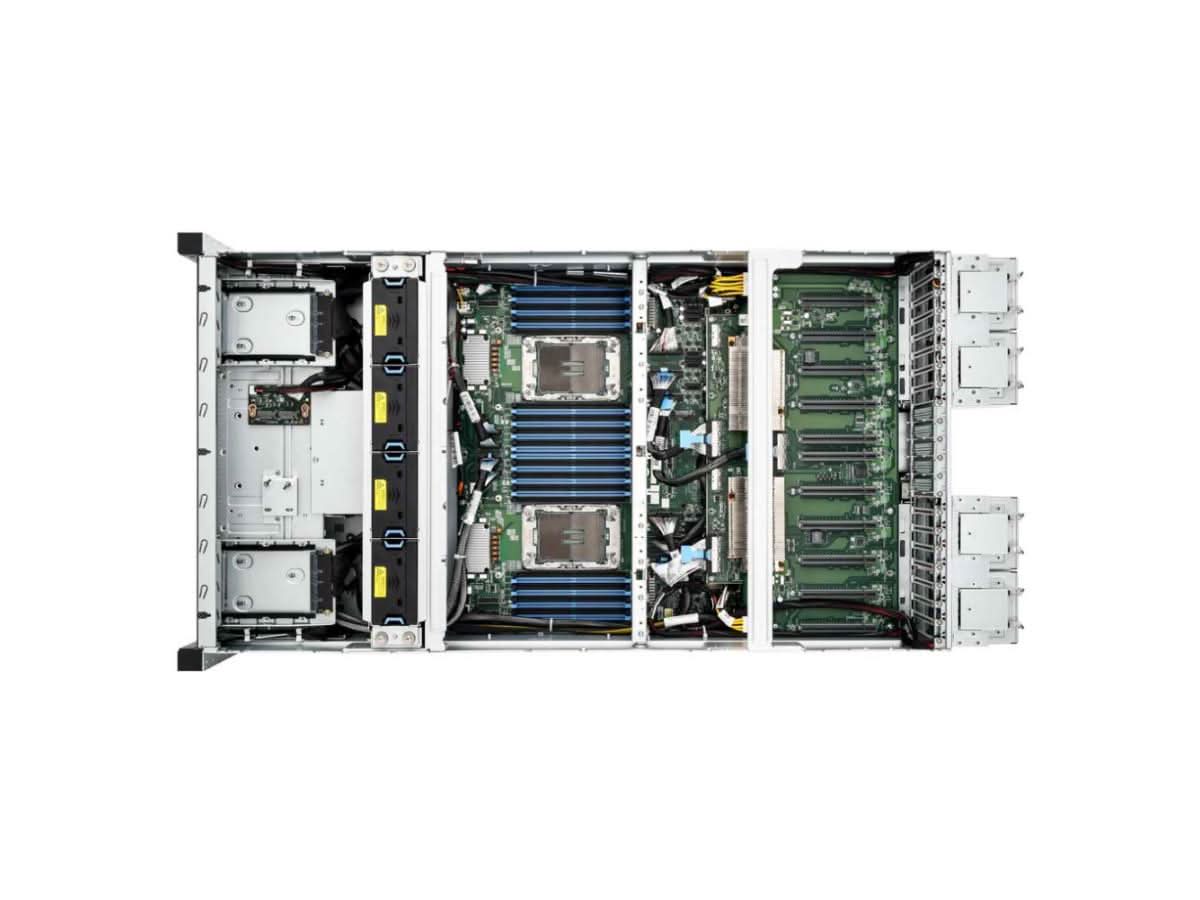

Tyan G4520G6U2BC-N 4U2S 8-GPU AI 8 NVMe U.2 GPU Server



Specifications

Model Number:  G4520G6U2BC-N

Brand:   Tyan

Alt Part Number(s):    G4520G6U2BC-N

Product Type:  Server



Technical Description

Brand:  Tyan

Model:  G4520G6U2BC-N

System Type: Server Barebone

Cabinet Form Factor: 4U Rackmount, GPU Servers

Processor / Type: Xeon

Processor / Max Supported Qty: 2

Mainboard / Chipset Type: AST2600

RAM / Technology: DDR5

RAM / Total Slots Qty: 8

RAM / Max Supported Size: 8792 GB

Hard Drive / Size: 2.5"

Hard Drive / Interface Type: NVMe

Hard Drive / Bays Qty: 8

Data Link Protocol: Gigabit Ethernet

Power / Device Type: Power Supply

Power / Provided (W): 9.6 KW

Power / Voltage Required: 200-240V

Interfaces & Connections: (2) USB 3.2 Gen.1 ports / (1) COM Port / (1) VGA port / (1) GbE dedicated for IPMI

Expansion Slots Total (Free): (11) PCIe Gen 5 x16 slots (FH/FL) / (3) PCIe Gen.5 x16 OCP 3.0 mezzanine slots

Features: 32 RDIMM slots with DDR5-6400 (1DPC) / 5200MHz (2DPC) / MRDIMM 8000 (1DPC) P core memory support / 2 Broadcom PEX89104 PCIe 5.0 switch deployed / 11 FH/FL PCIe 5.0 x16 / 8 NVMe U.2 hot-swap, tool-less drive bays / 3 NVMe M.2 22110/2280 slots / 3 PCIe 5.0 x16 OCP v3.0 LAN mezzanine slot / Hot-swap fans and redundant PSU
