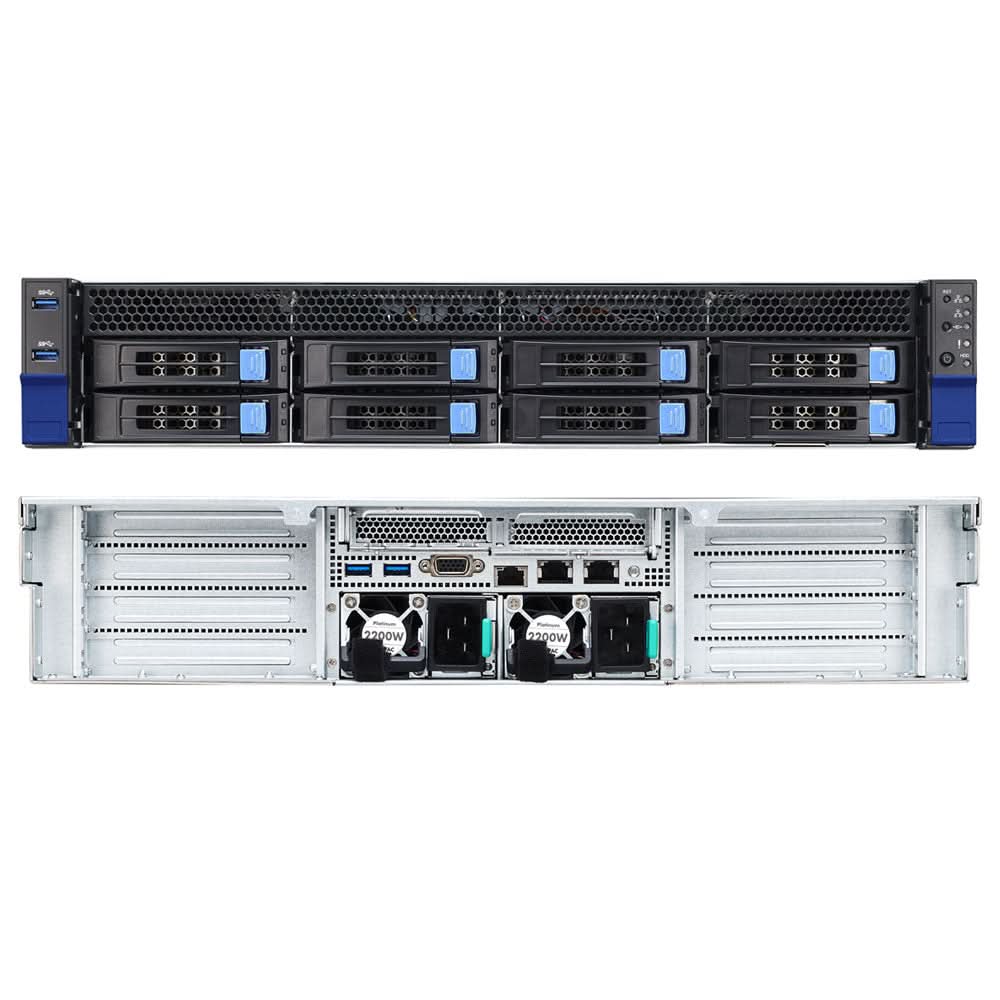

Tyan B8251T83E8HR-2T-N-EDA AMD EPYC 7003 Series 3rd Gen Server



Specifications

Model Number: B8251T83E8HR-2T-N-EDA

Brand:  Tyan

Alt Part Number(s):  B8251T83E8HR-2T-N-EDA

Product Type:  Server



Technical Description

Brand:  Tyan

Model: B8251T83E8HR-2T-N-EDA

Cabinet Form Factor: 2U

Processor Type: AMD EPYC 7003 Series

Processor Manufacturer: AMD

Memory:

• Technology: DDR5

• Total Slots: 16

Storage:

• Drive Bays: 8

• Interface Type: SATA

• Storage Controller Type: Serial ATA

• SATA Connections:

  • 2 × SATA-DOM connectors

  • 8 × SATA via 2 Slim SAS connectors

Networking:

• Data Link Protocol: Ethernet

• Ports:

  • 2 × 10 GbE RJ-45

  • 1 × Dedicated GbE for IPMI

Interfaces & Connections:

• USB:

  • 1 × USB 3.1 Gen 1 Type-A

  • 2 × USB 3.1 Gen 1 (via cable)

  • 2 × USB 3.1 Gen 1 (rear)

• COM: 1 × Header (COM1)

• VGA: 1 × D-Sub 15-pin port

Expansion Slots:

• Pre-installed TYAN Riser Cards (PCIe Gen 4):

  • 1 × M8251T83-L32T-2F riser card for 2 × FH/FL PCIe Gen 4 x16

  • 1 × M8251T83-R32T-2F riser card for 2 × FH/FL PCIe Gen 4 x16

  • 1 × M8251T83-LR32T-2L riser card for:

    • 1 × HH/HL PCIe Gen 4 x16 (right)

    • 1 × HH/HL PCIe Gen 4 x16 (left)

• FH/FL Physical Dimension: 4.4" × 12.3" (111.2 × 312 mm)

Power:

• Device Type: Power Supply

• Voltage Required: AC 100~240V

Dimensions:

• Width: 17.25 in

• Depth: 32.71 in

• Height: 3.43 in

RoHS Compliant: Yes
