Overview

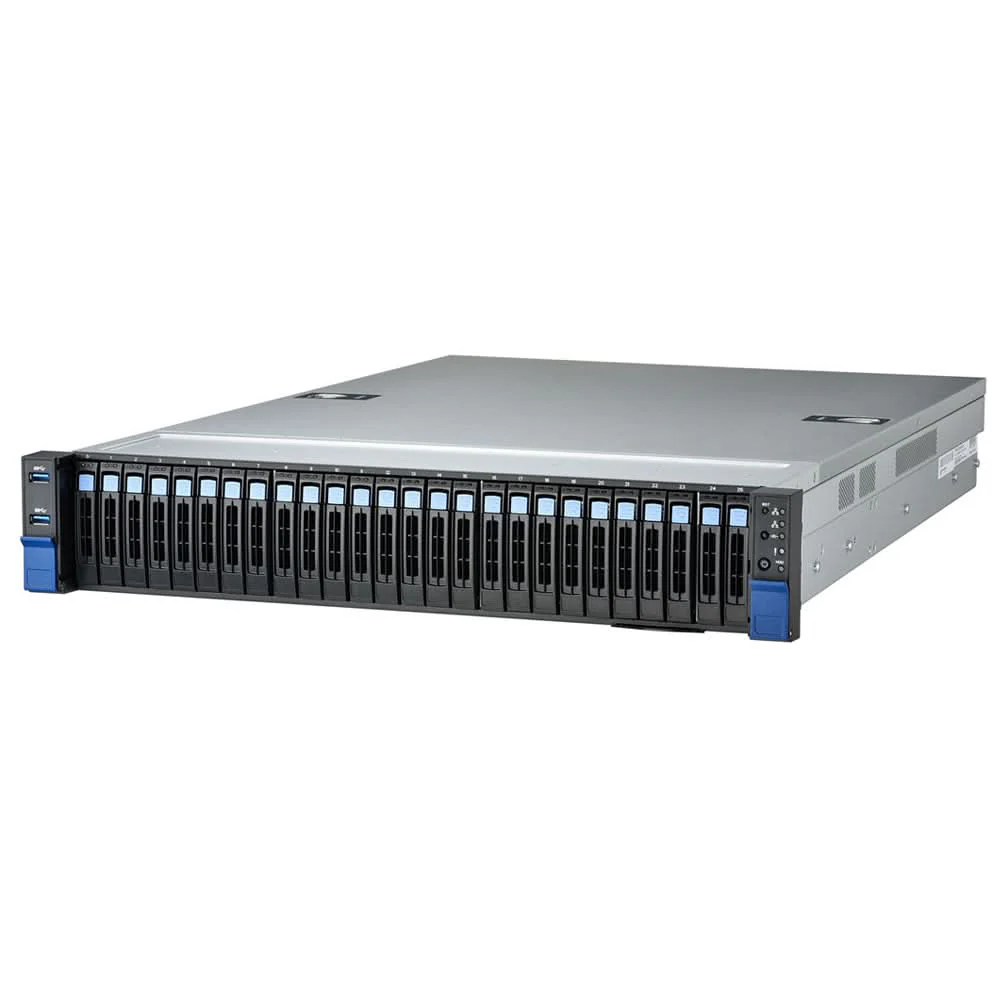

Tyan B8056T70AE26HR-2T-HE-TU 2U1S NVMe U.2 Titanium CRPS Storage Server



Specifications

Model Number:  B8056T70AE26HR-2T-HE-TU

Brand:   Tyan

Alt Part Number(s):    B8056T70AE26HR-2T-HE-TU

Product Type:  Server



Technical Description

Brand:  Tyan

Model:  B8056T70AE26HR-2T-HE-TU

Form Factor: 2U Rackmount, GPU Servers

Chassis Model: TS70A

Motherboard: S8056GM2NE-2T-TU

CPU Socket: 1 × AMD Socket SP5

Supported CPUs: AMD EPYC™ 9004 / 9005 Series

Max CPU TDP: Up to 400W (cTDP)

Memory Slots: 24 × DDR5 DIMM

Max Memory Capacity: Up to 6,144 GB (RDIMM / 3DS RDIMM)

Memory Speed: Up to 5200 MT/s (EPYC 9005)

Storage Bays: 26 × 2.5" Hot-Swap NVMe (U.2)

NVMe Interface Support: PCIe Gen 4.0

M.2 Support: 2 × M.2 22110/2280 via PCIe Gen 4

PCIe Slots: 1 × PCIe Gen5 x8, 1 × PCIe Gen5 x16 (OCP 3.0)

Networking: 2 × 10GbE (Intel X710-AT2), 1 × GbE for IPMI

BMC Chipset: Aspeed AST2600 (IPMI 2.0, KVM, remote media)

Power Supply: 2 × 1600W CRPS (1+1 Redundant)

Power Efficiency: 80 Plus Titanium

Cooling: 3 × hot-swap 8056 fans (redundant)

USB Ports: 2 front, 2 rear, 1 internal, 1 header (all USB 3.2 Gen1)

Compliance: FCC, CE, RCM, VCCI, BSMI, RoHS 6/6
