Overview

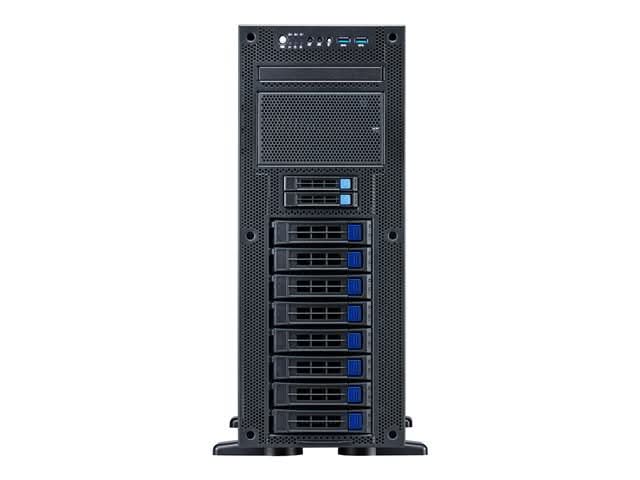

Tyan B8050F65TV8E2H-N AMD EPYC 9004 Series 4th Gen Server



Specifications

Model Number: B8050F65TV8E2H-N

Brand:  Tyan

Alt Part Number(s):  B8050F65TV8E2H-N

Product Type:  Server



Technical Description

Brand:  Tyan

Model: B8050F65TV8E2H-N

Form Factor: Tower (4U)

Dimensions (WxDxH): 16.8 in x 25.6 in x 6.9 in

CPU Support: Socket SP5, 1 × AMD EPYC (no CPU included), Upgradable

Motherboard: Tyan S8050GM2NE

Memory: 0 GB installed / up to 2048 GB DDR5 ECC, 8 × DIMM slots, Registered, 8-channel

Storage Bays: 10 hot-swap (2 × 2.5", 8 × 3.5")

Storage Controller: 8 × SATA/SAS (6Gb/s / 12Gb/s), 2 × SATA/NVMe (SATA-600 / NVMe)

Graphics: ASPEED AST2600, 1 × VGA

Networking: 2 × 1GbE (Intel I210-AT), 1 × Management LAN (IPMI 2.0)

Expansion Slots: 5 × PCIe 5.0 x16, 2 × M.2 (2280/22110), 2 × U.2

Interfaces: 4 × USB 3.2 Gen 1, 1 × VGA, 3 × RJ-45, 1 × Serial (DB-9)

Power Supply: 1 × 2000W (80 PLUS Platinum), AC 100–240V

Cooling: 3 × Fans

Boost your enterprise performance with the Tyan B8050F65TV8E2H-N AMD EPYC 9004 Series 4th Gen Server -ORDER TODAY!

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
