Overview

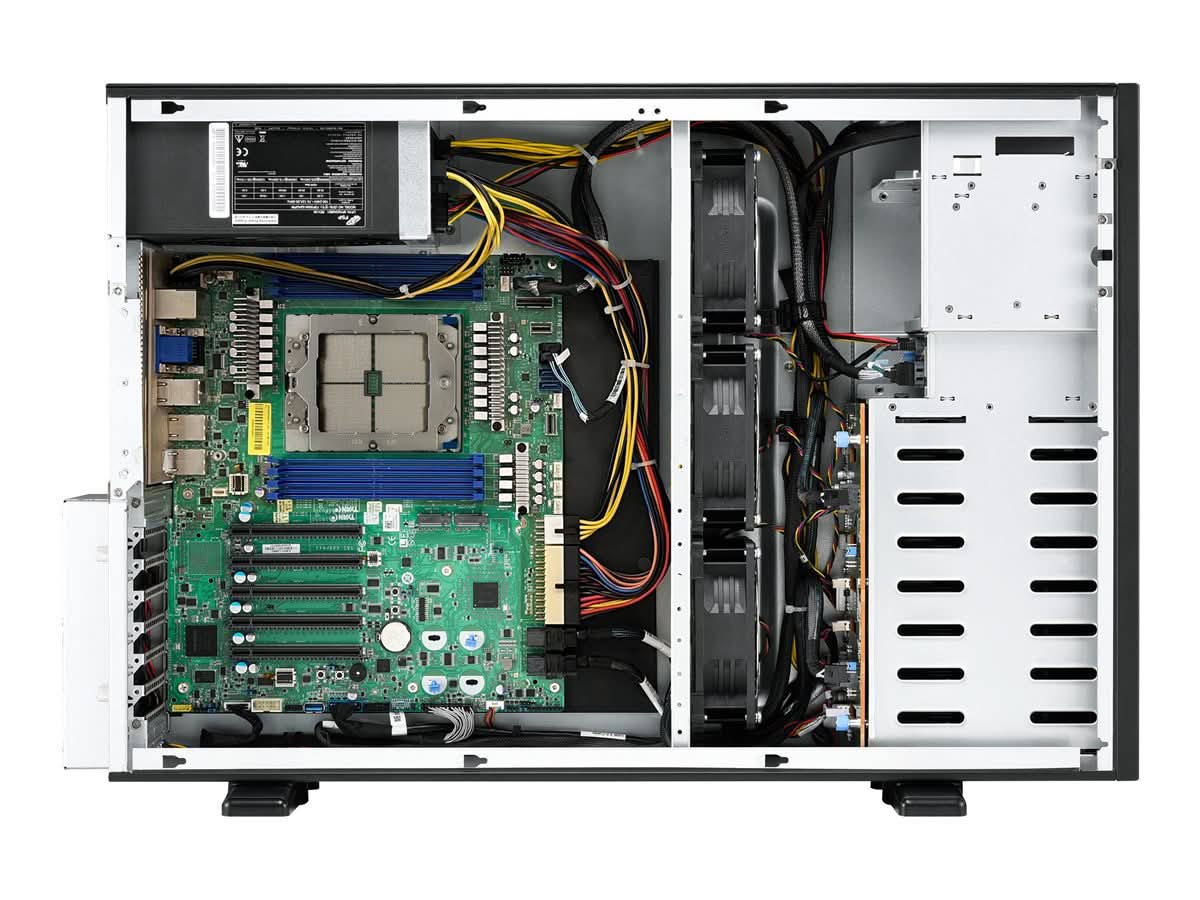

Tyan B8050F65TV8E2H-2T-N AMD EPYC 9004 Series 4th Gen Server



Specifications

Model Number: B8050F65TV8E2H-2T-N

Brand:  Tyan

Alt Part Number(s):  B8050F65TV8E2H-2T-N

Product Type:  Server



Technical Description

Brand:  Tyan

Model: B8050F65TV8E2H-2T-N

Model: Tyan Transport HX FT65T-B8050

Form Factor: Tower (4U Equivalent)

Processor:

• Socket: SP5

• Max Supported CPUs: 1

• Chipset: Tyan S8050GM4NE-2T

Memory:

• Installed: 0 GB

• Max Capacity: 2048 GB

• Technology: DDR5 ECC Registered

• Slots: 8 × DIMM 288-pin

• Architecture: 8-channel

Storage:

• Hot-Swap Bays: 10 (2 × 2.5", 8 × 3.5")

• Controllers:

  • 8 × SATA/SAS (6Gb/s / 12Gb/s)

  • 2 × SATA/NVMe (SATA-600 / NVMe)

• Drives Installed: None

Graphics:

• GPU: ASPEED AST2600

• Interface: VGA (1 rear)

Networking:

• 2 × 10GbE (Intel X710-AT2)

• 2 × 1GbE (Intel I210-AT)

• 1 × Dedicated GbE for IPMI

• Remote Management: IPMI 2.0

Expansion Slots:

• 5 × PCIe 5.0 x16 (Full-height)

• 2 × M.2 (2280/22110)

• 2 × U.2

Interfaces:

• 4 × USB 3.2 Gen 1 (2 front, 2 rear)

• 1 × Serial (DB-9, rear)

• 1 × VGA (rear)

• 5 × RJ-45 (2 × 1GbE, 2 × 10GbE, 1 × IPMI)

Power Supply:

• Installed: 1 × 2000W PSU

• Voltage: AC 100–240V

• Efficiency: 80 PLUS Platinum

Dimensions:

• Width: 16.8 in

• Depth: 25.6 in

• Height: 6.9 in

Environmental Operating Range:

• Temperature: 50–95 °F

• Humidity: Up to 90% (non-condensing)

Compliance:

• RoHS, VCCI Class A, FCC SDOC Class A

Operating System:

• Not included



Boost your enterprise performance with the Tyan B8050F65TV8E2H-2T-N AMD EPYC 9004 Series 4th Gen Server - ORDER TODAY!
