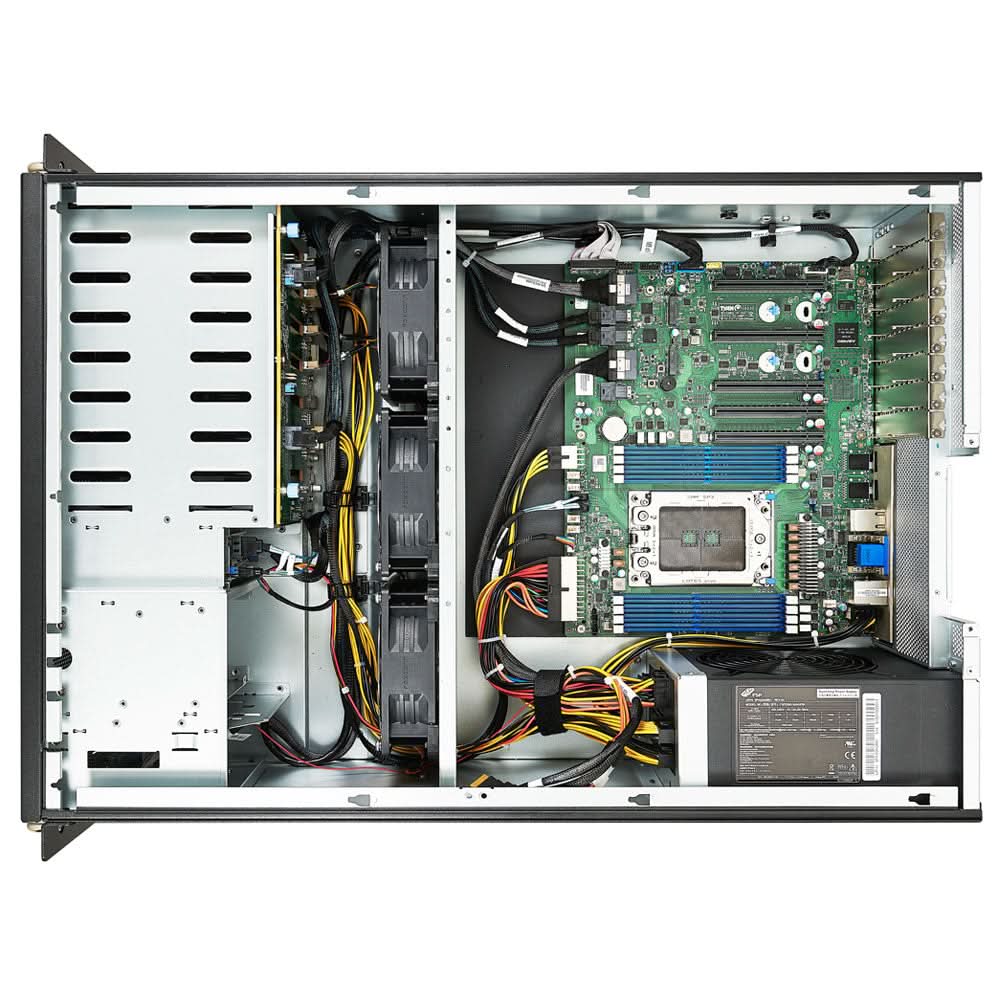

Tyan B8030F65TV8E2H-N AMD EPYC 7003 Series 3rd Gen Server



Specifications

Model Number: B8030F65TV8E2H-N

Brand:  Tyan

Alt Part Number(s):  B8030F65TV8E2H-N

Product Type:  Server



Technical Description

Brand:  Tyan

Model: B8030F65TV8E2H-N

Model: Tyan Transport HX FT65T-B8030

Form Factor: 4U Rackmount

Processor Socket: Socket SP3 (CPU not included)

Motherboard: Tyan S8030GM2NE

Chipset: Supports AMD EPYC (up to 280W TDP)

Memory:

• Type: DDR4 SDRAM

• Slots: 8 × DIMM (288-pin)

• Max Capacity: 2048 GB

• Supported Configurations:

  • 512 GB Registered

  • 1024 GB Load-Reduced (LRDIMM)

  • 2048 GB 3DS Load-Reduced

• Features: Registered, LRDIMM, 3DS LRDIMM, 3DS Registered

Storage:

• Hot-Swap Bays:

  • 2 × 2.5"

  • 8 × 3.5"

• Drives Included: None

Graphics:

• Controller: ASPEED AST2500

• Interface: VGA (DB-15)

Networking:

• Ports:

  • 2 × 1GbE RJ-45

  • 1 × Dedicated management port (1GbE)

• Controllers: Intel I210, Realtek RTL8211E

• Management: IPMI 2.0

Interfaces:

• USB: 4 × USB 3.0 Type-A (2 front, 2 rear)

• VGA: 1 × DB-15

• Serial: 1 × DB-9

• LAN: 2 × RJ-45 (1GbE), 1 × RJ-45 (management)

Expansion Slots:

• 5 × PCIe 4.0 x16

• 1 × PCIe 4.0 x8 (riser card only)

• 2 × M.2 (2280/22110)

• 1 × U.2

Cooling:

• Fans: 5

• Watchdog timer: Included

Power Supply:

• Installed: 1 × 2000W PSU

• Input: AC 110–240V, 50–60 Hz

• Efficiency: 80 PLUS Gold

Dimensions:

• Width: 17.2 in

• Depth: 25.6 in

• Height: 6.9 in

• Weight: Not specified

Environmental:

• Operating Temperature: 50–95 °F

• Humidity: Up to 90% (non-condensing)

Compliance:
RoHS, VCCI Class A, DOC-A, RCM Class A, FCC SDOC Class A, SMBIOS 3.3
