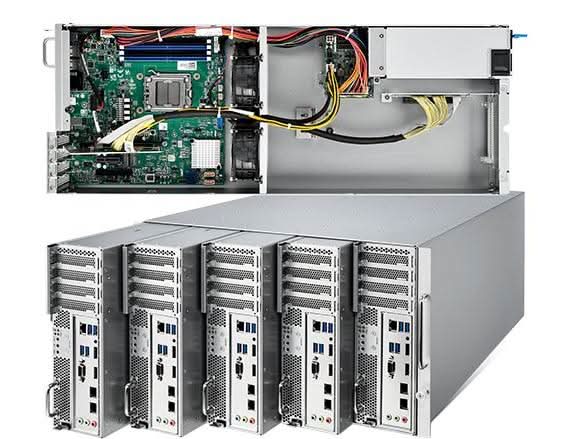

Tyan B8016H68D5 6U5N AMD Ryzen 7000 Series Server



Specifications

Model Number: B8016H68D5

Brand:  Tyan

Alt Part Number(s):  B8016H68D5

Product Type:  Server



Technical Description

Brand:  Tyan

Model: B8016H68D5

Model: Transport CX HG68-B8016

Cabinet Form Factor: 6U

Processor Manufacturer: AMD

Max Supported Processors: 1

Mainboard Chipset: AMD B650

RAM Technology: DDR5

Total RAM Slots: 4

Max Supported RAM: 128 GB

Drive Interface Types: SATA 6 Gb/s, NVMe

Total Drive Bays: 6

RAID Support: RAID 0, 1, 10

Network Protocol: Gigabit Ethernet

Power Supply Type: Redundant

Installed Power Supplies: 2

Power Output: 800 Watts

Power Requirements:

• AC 100–127V / 10A

• AC 200–240V / 5A

Interfaces & Connections:

• USB 3.2 Gen 1

• D-Sub 15-pin

• DisplayPort

• Line-in / Line-out / MIC

• RJ-45

Expansion Slots (Total/Free):

• 1 × PCIe Gen 4 x4 slot

• 1 × PCIe Gen 4 x8 slot (with x4 link)

• 1 × PCIe Gen 5 x16 slot

Dimensions:

• Width: 17.60 inches

• Depth: 26.85 inches

• Height: 10.44 inches

RoHS Compliant: Yes

Boost your enterprise performance with the Tyan B8016H68D5 6U5N AMD Ryzen 7000 Series Server —ORDER TODAY!
