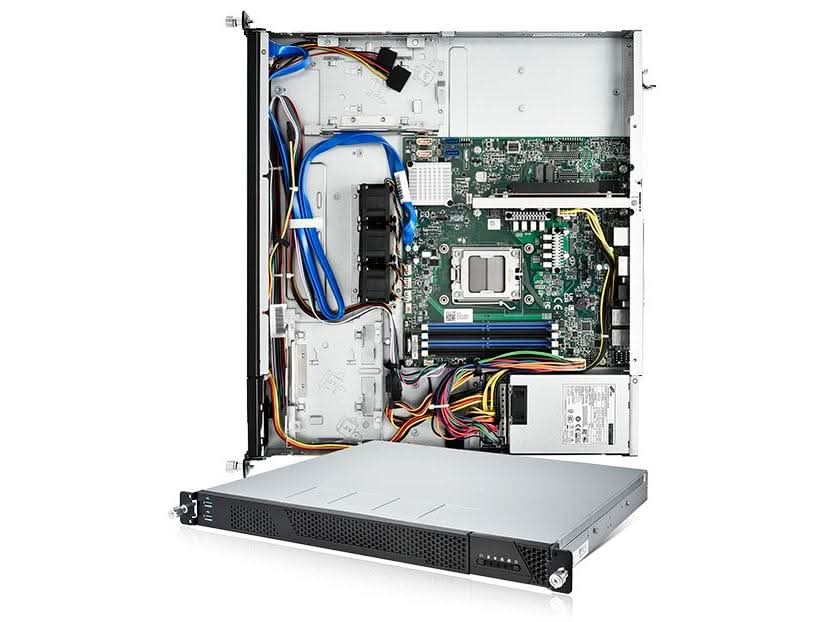

Tyan B8016G40V4 AMD Ryzen 7000 Series 1U Server



Specifications

Model Number: B8016G40V4

Brand:  Tyan

Alt Part Number(s):  B8016G40V4

Product Type:  Server



Technical Description

Brand:  Tyan

Model: B8016G40V4

Model: Transport CX GX40-B8016

Cabinet Form Factor: 1U

Processor Manufacturer: AMD

Max Supported Processors: 1

Mainboard Chipset: AMD B650

RAM Technology: DDR5

Total RAM Slots: 4

Max Supported RAM: 128 GB

Drive Bay Sizes: 3.5", 2.5"

Drive Interface Types: SATA 6 Gb/s, NVMe

Total Drive Bays: 6

Network Protocol: Gigabit Ethernet

Power Supply Type: Standard

Installed Power Supplies: 1

Power Output: 300 Watts

Power Requirements: AC 100–240V

Interfaces & Connections: USB 3.1 Gen 1, USB 3.2 Gen 1, RJ-45, D-Sub 15-pin, DisplayPort

Expansion Slots (Total/Free):

• 1 × PCIe Gen 5 x16 slot

Dimensions:

• Width: 19 inches

• Depth: 16.1 inches

• Height: 1.75 inches

RoHS Compliant: Yes
