Overview

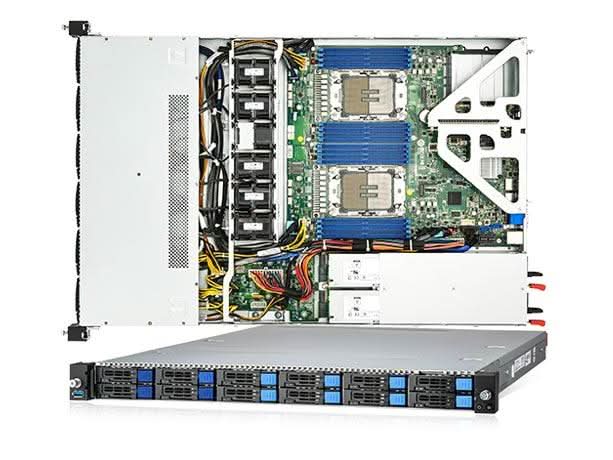

Tyan B7136G68AV4E8HR-2T Intel Xeon SP Series 4th Gen 1U Server



Specifications

Model Number: B7136G68AV4E8HR-2T

Brand:  Tyan

Alt Part Number(s):  B7136G68AV4E8HR-2T

Product Type:  Server



Technical Description

Brand:  Tyan

Model: B7136G68AV4E8HR-2T

Model: Thunder CX GC68A-B7136

Cabinet Form Factor: 1U

Processor Type: Intel Xeon

Processor Manufacturer: Intel

Max Supported CPUs: 2

Chipset: Intel C741

RAM Technology: DDR5

RAM Slots: 16 total

Max Supported RAM: 2048 GB

Drive Bay Size: 2.5"

Drive Interfaces: SATA 6 Gb/s, SAS 12 Gb/s, NVMe

Drive Bays: 12

RAID Support: RAID 0, 1, 5, 10

Network Protocol: Gigabit Ethernet

Power Supply Type: Redundant

Power Supplies Installed: 2

Power Provided: 850 Watts

Voltage Requirement: AC 100–240V

Interfaces & Connections: USB 3.2 Gen1, D-Sub 15-pin (VGA), RJ45, DB-9 COM

Expansion Slots:

• 2 × PCIe Gen5 x16 slots

• 1 × PCIe Gen5 x16 OCP 3.0 mezzanine slot

Dimensions:

• Width: 17.26 in

• Depth: 26.77 in

• Height: 1.69 in

RoHS Compliant: Yes



Boost your enterprise performance with the Tyan B7136G68AV4E8HR-2T Intel Xeon SP Series 4th Gen 1U Server —ORDER TODAY!

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
