Tyan B7132T75E8HR Intel Xeon SP Series 4th Gen Server



Specifications

Model Number: B7132T75E8HR

Brand:  Tyan

Alt Part Number(s):  B7132T75E8HR

Product Type:  Server



Technical Description

Brand:  Tyan

Model: B7132T75E8HR

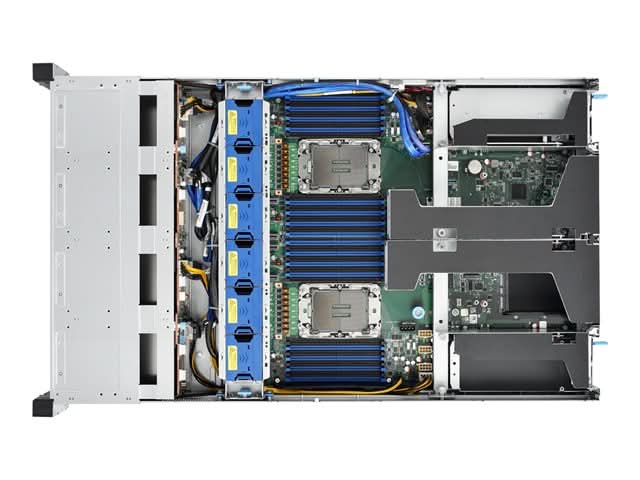

Product Description: Tyan Thunder HX TS75-B7132 – 2U Rackmount Server (No CPU, No RAM, No HDD)

Form Factor: 2U Rackmount
Processor Socket: LGA4677 Socket-E
Max CPU Supported: 2 (Upgradable)
Chipset: Intel C621A
Motherboard: Tyan S7132GM2NRE

Memory:

• Slots: 32 × DIMM 288-pin

• Installed: 0 GB

• Max Supported: 4096 GB DDR5 SDRAM

• Features: Registered, 8-channel architecture, 3DS registered

Storage:

• Hot-Swap Bays: 8 × 3.5"

• Installed Drives: None

• Controller: RAID (SATA 6Gb/s)

• RAID Levels: 0, 1, 5, 10

Optical Drive: Not included

Graphics:

• Controller: ASPEED AST2600

• Interface: VGA (rear)

Networking:

• Ports: 2 × Gigabit Ethernet (Intel I210-AT, Realtek RTL8211F)

• Management Port: 1 × Dedicated GbE for IPMI

• Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet

• Remote Management: IPMI 2.0

Expansion:

• PCIe Slots:

  • 1 × PCIe 5.0 x4

  • 4 × PCIe 5.0 x16

• M.2 Slots: 2 × M.2 (2280/22110)

Interfaces:

• 3 × USB 3.2 Gen 1 (2 front, 1 rear)

• 1 × VGA

• 2 × RJ-45 (Gigabit LAN)

• 1 × RJ-45 (management LAN)

Cooling: 6 × 60 mm fans

Power:

• Power Supplies: 2 × 1600W (Redundant, 1+1)

• Voltage: AC 100–127V / 200–240V (50–60 Hz)

• Certification: 80 PLUS Platinum

Operating System: Not included

Dimensions & Weight:

• Width: 17.3 in

• Depth: 29.6 in

• Height: 3.4 in

• Weight: 44.75 lbs

• Shipping Weight: 72.97 lbs

Environmental:

• Operating Temperature: 50°F to 95°F

Compliance: CB, RoHS, C-Tick Class A, LVD, VCCI Class A, DOC-A, FCC SDOC Class A, SMBIOS 3.3



Boost your enterprise performance with the Tyan B7132T75E8HR Intel Xeon SP Series 4th Gen Server —ORDER TODAY!
