Overview

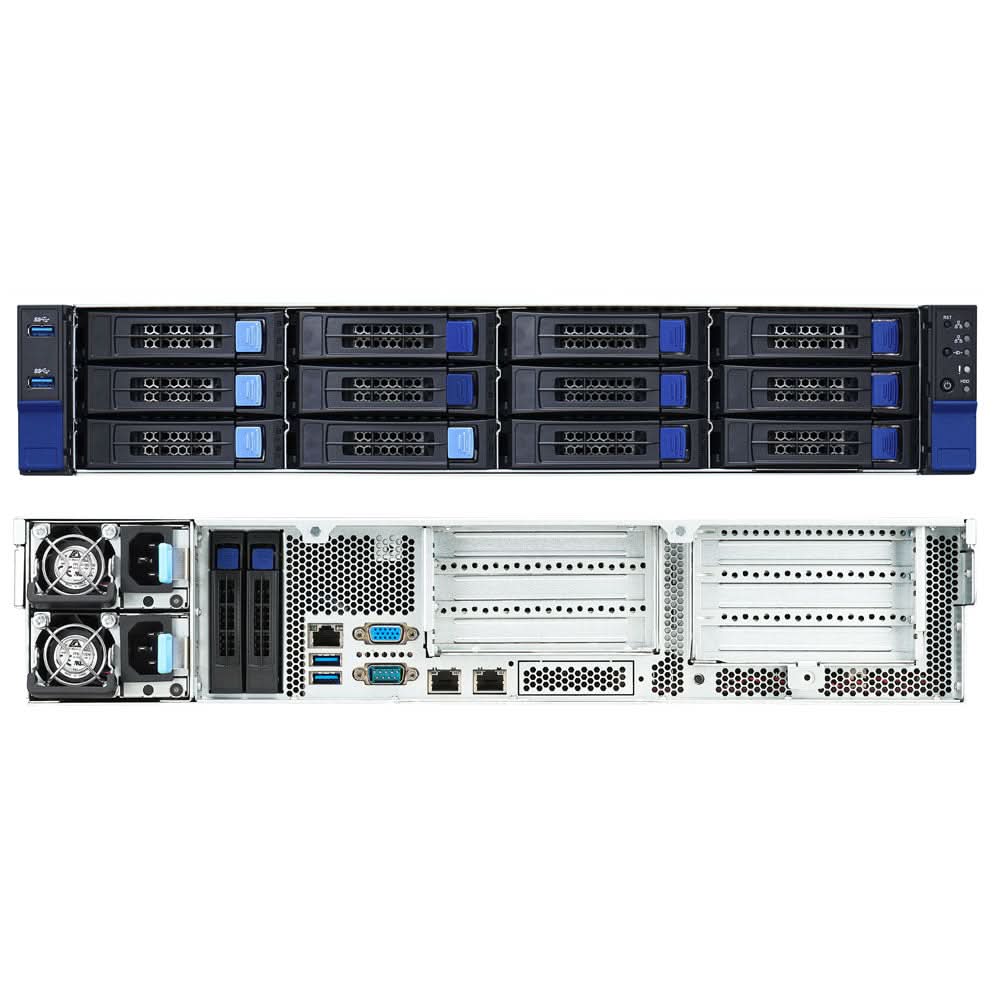

Tyan B7126T65V10E4HR Intel Xeon SP Series 3rd Gen Server



Specifications

Model Number: B7126T65V10E4HR

Brand:  Tyan

Alt Part Number(s):  B7126T65V10E4HR

Product Type:  Server



Technical Description

Brand:  Tyan

Model: B7126T65V10E4HR

Product Description: Tyan Thunder SX TS65-B7126 – 2U Rackmount Server (No CPU, No RAM, No HDD)

Form Factor: 2U Rackmount

Scalability: 2-way

CPU Socket: LGA4189 (Supports up to 2 CPUs – no CPU installed)

Chipset: Intel C621A

Motherboard: Tyan S7126GM2NRE

Memory:

• Slots: 16 DIMM (288-pin)

• Installed: 0 GB

• Max Capacity: 2048 GB DDR4 SDRAM

Storage:

• Drive Bays: No HDD installed

• Storage Controller: RAID (SATA 6Gb/s)

• Supported RAID Levels: 0, 1, 5

Optical Drive: Not included

Graphics:

• Controller: ASPEED AST2500

• Interface: VGA (1 rear)

Networking:

• Ethernet Controller: Realtek RTL8211FD-CG

Power:

• Voltage: AC 200–240V

• Efficiency: 80 PLUS Platinum Certified

OS: No operating system provided

Dimensions:

• Width: 17.3 in

• Depth: 25.6 in

• Height: 3.4 in

• Weight: 39.68 lbs

Shipping Weight: 56.22 lbs

Environmental Operating Range:

• Temperature: 50°F to 95°F

Compliance: CB, RoHS, LVD, VCCI Class A, DOC-A, RCM Class A, ACPI 6.1, SMBIOS 3.0, FCC SDOC Class A



Boost your enterprise performance with the Tyan B7126T65V10E4HR Intel Xeon SP Series 3rd Gen Server —ORDER TODAY!

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
