Overview

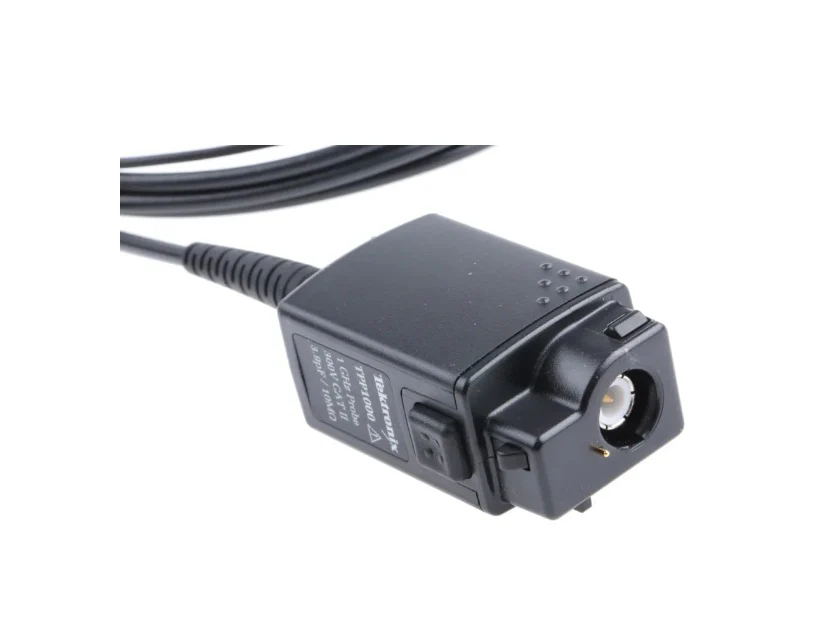

The Tektronix TPP1000 is a high-bandwidth 1 GHz passive voltage probe designed for use with Tektronix oscilloscopes featuring the TekVPI™ interface. It provides high-speed performance comparable to active probes with a 10X attenuation factor and exceptionally low capacitive loading of less than 3.9 pF.



Specifications

Model Number:  TPP1000

Brand:  Tektronix

Alt Part Number(s):  TPP1000

Product Type:  Passive Oscilloscope Probe

Technical Description

Brand:  Tektronix

Model Number:  TPP1000

Bandwidth (–3 dB):  1GHz

Attenuation:  10:1 (10×)

Maximum Voltage:  300V

Cable Length:  ~1.3m

Interface:  TekVPI

Compatibility:  MDO3000, MDO4000, MSO/DPO5000, and 5 Series MSO types
