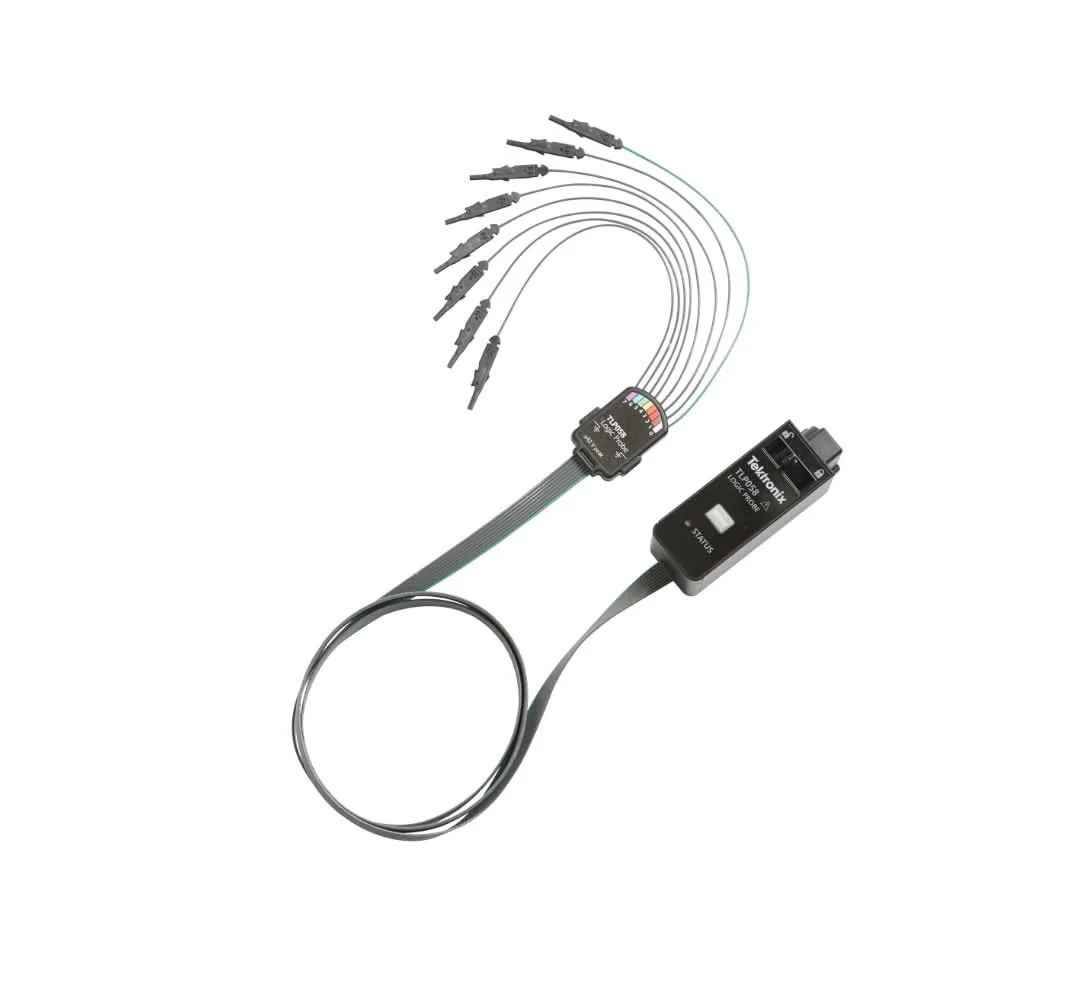

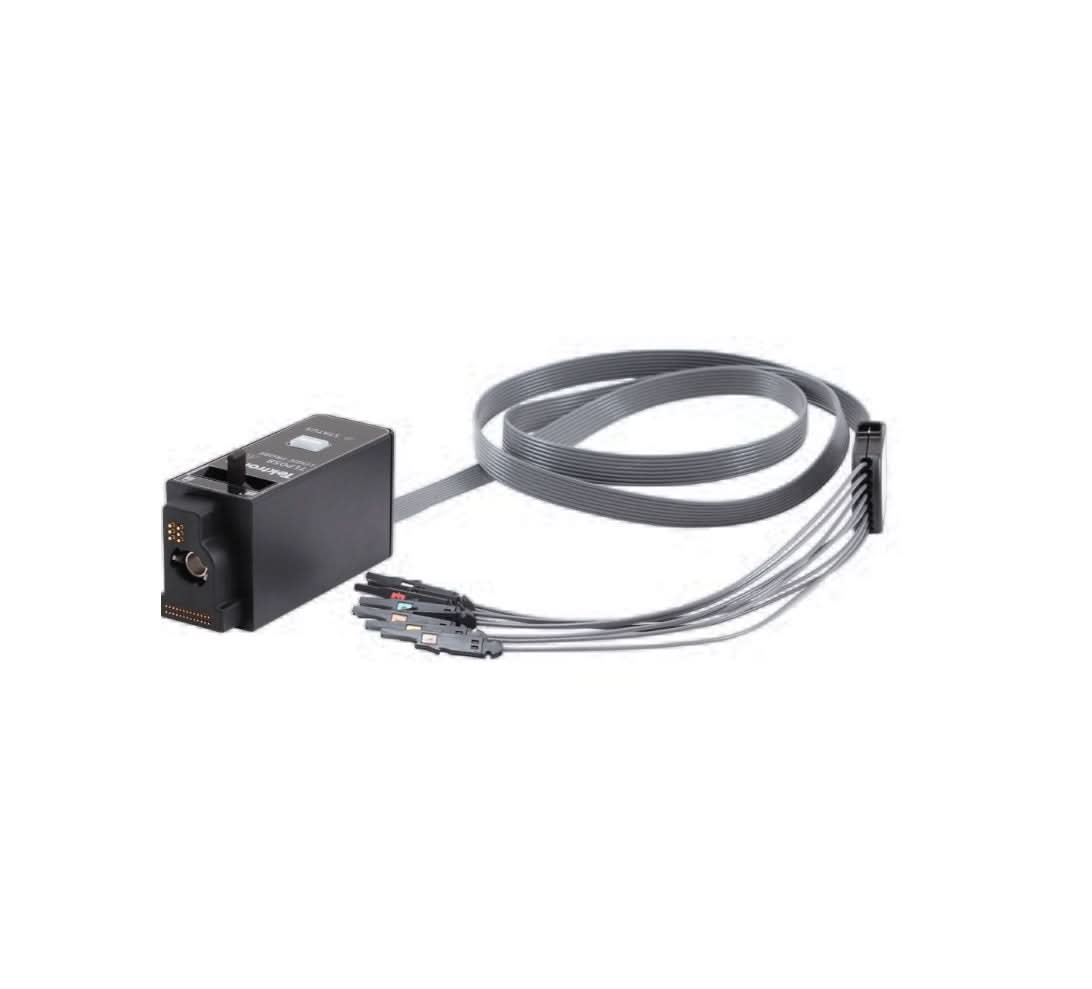

Tektronix TLP058 8-Channel 4/5/6-Series MSO FlexChanne Digital Logic Probe
Overview
The Tektronix TLP058 is an 8-channel, general-purpose logic probe used with Tektronix 4, 5, and 6 Series Mixed Signal Oscilloscopes (MSOs). It allows a single analog input channel on these oscilloscopes to be converted into eight digital logic channels using the built-in FlexChannel technology
Specifications
Model Number: TLP058
Brand: Tektronix
Alt Part Number(s): TLP058
Product Type: Logic Probe
Technical Description
Brand: Tektronix
Model Number: TLP058
Series: FlexChannel Series
Number of Channels: 8
Cable Length: 39.37"
Sampling Rate: 6.25 GS/s
Bandwidth: 500 MHz
Input Capacitance: 3 pF
Input Impedance: 100 kΩ
For Use With: 4 Series MSO, 5 Series MSO, 6 Series MSO
Maximum Input Voltage: 50 V
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
* Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
