Overview

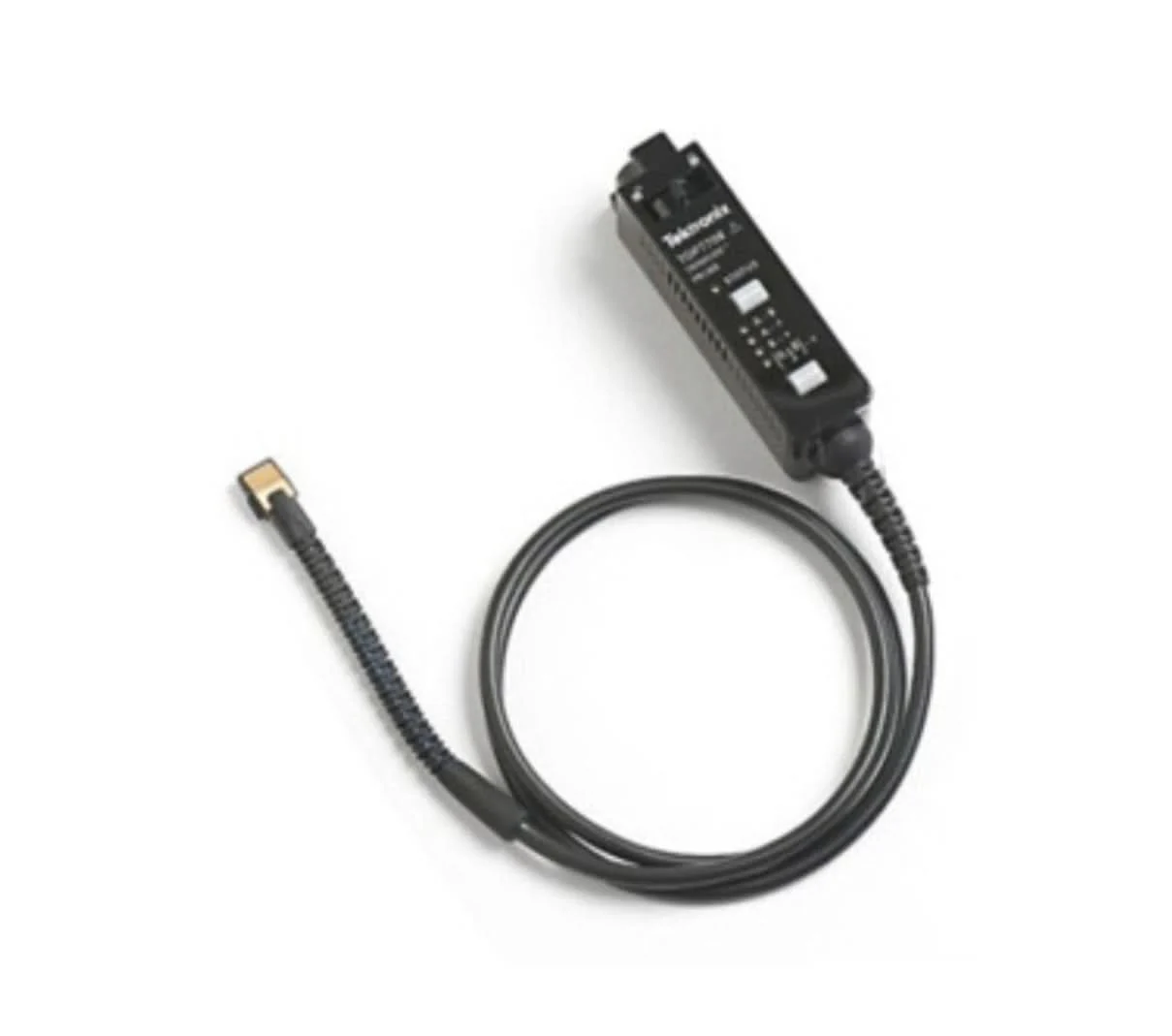

The Tektronix TDP7706 is a high-performance, 6 GHz TriMode Differential Probe used with real-time oscilloscopes for accurately measuring high-speed signals. Its unique "TriMode" functionality allows engineers to switch between differential, single-ended A, single-ended B, and common mode measurements without physically moving the probe connection points on the circuit board.



Specifications

Model Number:  TDP7706

Brand:  Tektronix

Alt Part Number(s):  TDP7706

Product Type:  Differential Probe

Technical Description

Brand:  Tektronix

Model Number:  TDP7706

Series:  TDP7000

Cable Length:  48m

Bandwidth:  6GHz

Attenuation:  4X, 10X

Input Capacitance:  0.4pF

Maximum Input Voltage:  12V

Input Impedance:  100KΩ

Interface:  FlexChannel

Risetime:  0.065ns

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

* Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
