Overview

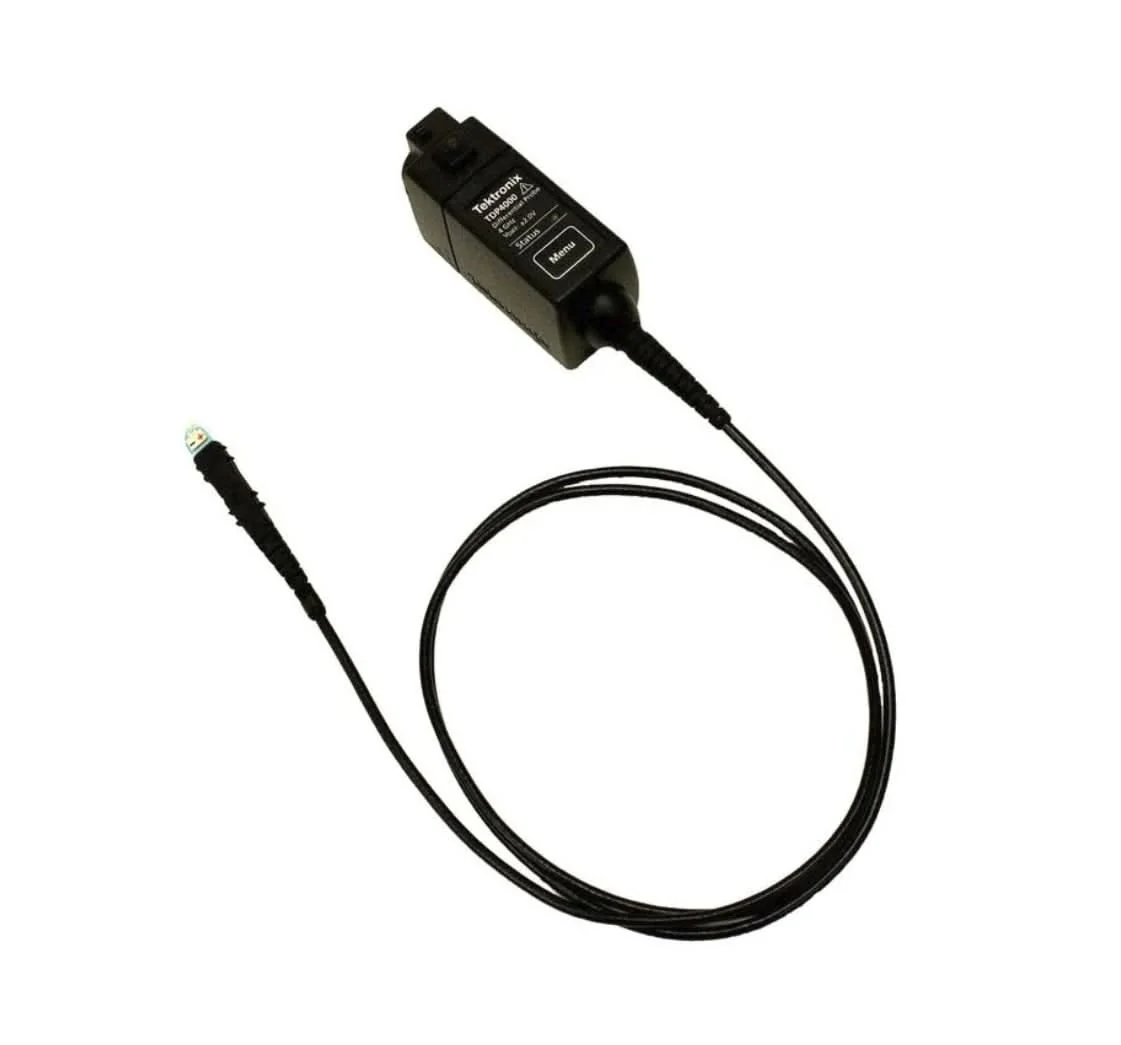

The Tektronix TDP4000 is a 4 GHz differential active probe with the TekVPI™ interface, designed for making high-frequency, low-voltage measurements in high-speed digital systems and serial bus designs. It is ideal for applications requiring excellent signal fidelity and minimal loading effects on the Device Under Test (DUT).



Specifications

Model Number:  TDP4000

Brand:  Tektronix

Alt Part Number(s):  TDP4000

Product Type:  Differential Probe

Technical Description

Brand:  Tektronix

Model Number:  TDP4000

Series:  TDP Series

Cable Length:  48"

Bandwidth:  4GHz

Attenuation:  5X

Input Capacitance:  0.3pF

Maximum Input Voltage:  15V

Input Impedance:  100kΩ

Interface:  TekVPI

Risetime:  0.115ns

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet
