Overview

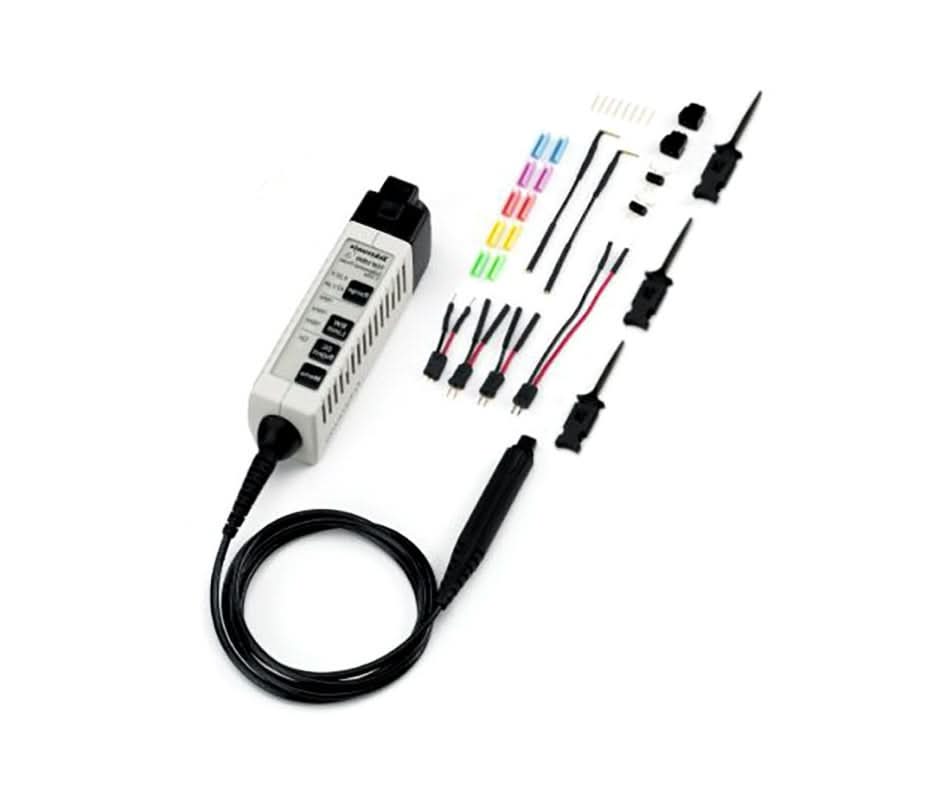

The Tektronix TDP1000 is a 500MHz, high-voltage differential oscilloscope probe designed for safely and accurately making floating or isolated measurements in high-speed digital systems and power supply designs. It connects directly to Tektronix oscilloscopes with the TekVPI™ interface, eliminating the need for an external power supply.



Specifications

Model Number:  TDP1000

Brand:  Tektronix

Alt Part Number(s):  TDP1000

Product Type:  Differential Probe

Technical Description

Brand:  Tektronix

Model Number:  TDP1000

Series:  TDP Series

Cable Length:  1.2m

Bandwidth:  500MHz

Attenuation:  5X, 50X

Input Capacitance:  1pF

Maximum Input Voltage:  42V

Input Impedance:  1MΩ

Interface:  TekVPI

Risetime:  0.35ns

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet
