Overview

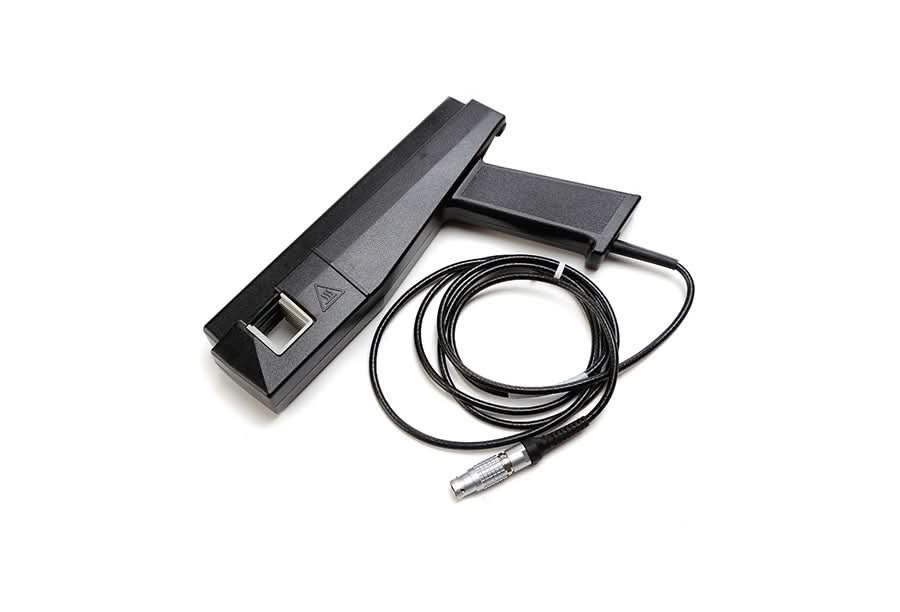

The Tektronix TCP303 is an AC/DC Current probe that offers a DC to 15MHz bandwidth and measures up to 150A DC continuous current. It requires the separate TCPA300 current probe amplifier to operate as a complete current measurement system.



Specifications

Model Number:  TCP303

Brand:  Tektronix

Alt Part Number(s):  TCP303

Product Type:  Current Probe

Technical Description

Brand:  Tektronix

Model Number:  TCP303

Series:  TCP300 Series

Cable Length:  2m

Bandwidth:  15MHz

Maximum Wire Size:  21, 25mm

Minimum Current:  5mA

Maximum Current:  150A

Peak Current:  500A

Maximum Input Voltage:  600V

Rise time:  23ns

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet
