Tektronix P6316 MSO2000 Series 16 Channel 0.9m Mixed Signal Logic Probe
Overview

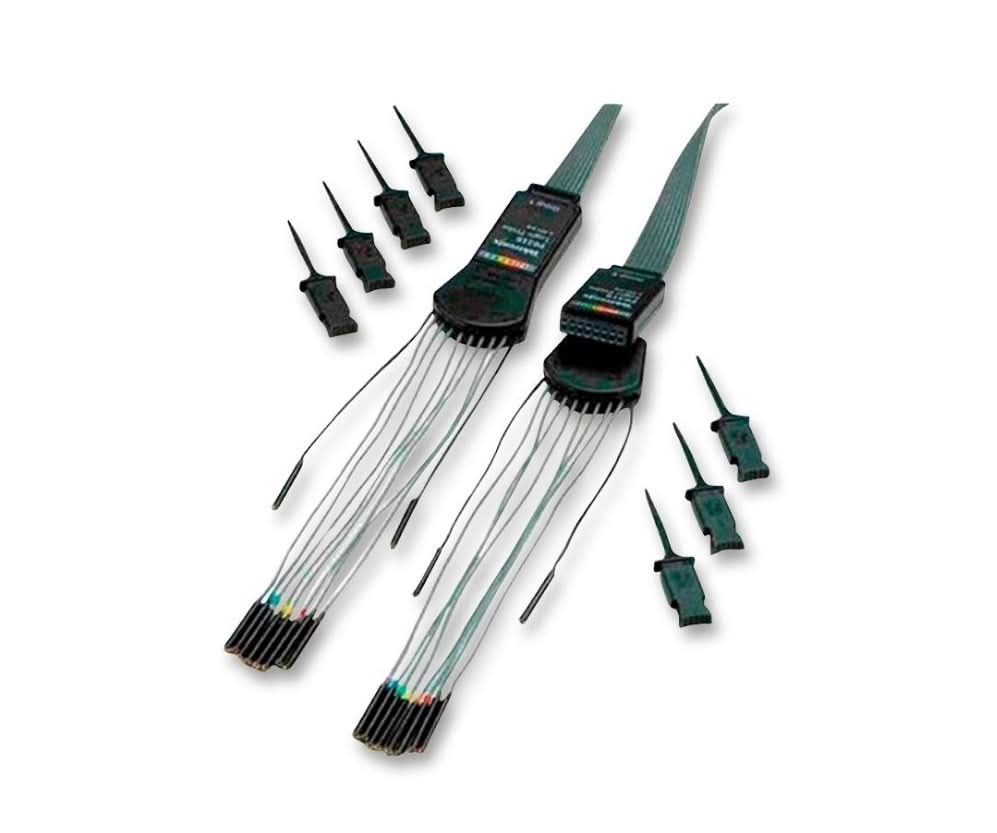

This unique probe design offers two eight-channel pods, simplifying the process of connecting to the device-under-test. When connecting to square pins, the P6316 can connect directly to 8×2 square pin headers spaced on tenth-inch centers. When more attachment flexibility is required, you can use the included flying lead sets and grabbers to clip onto surface mount devices or test points.
Specifications
Model Number: P6316
Brand: Tektronix
Alt Part Number(s): P6316
Product Type: Logic Probe
Technical Description
Brand: Tektronix
Model Number: P6316
Series: MSO2000 Series
Input Channels: 16 digital (organized into two eight-channel pods)
Cable Length: 0.9 m
Input Capacitance: 8 pF
Input Impedance: 101 kΩ
Maximum Input Voltage: 40 V
Minimum Signal Swing: 500 mV
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
* Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
