Overview

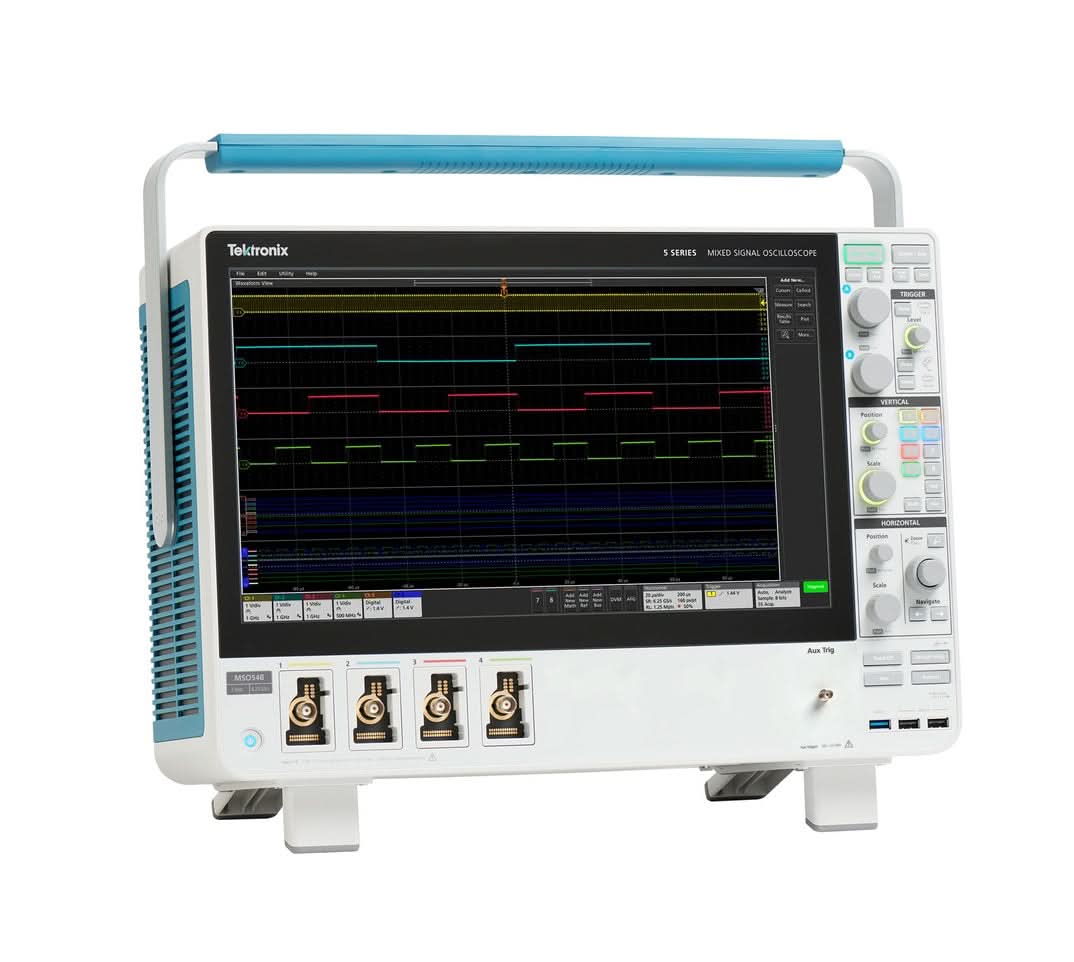

The MSO54B/5-BW-1000 is a Tektronix 5 Series B 15.6" TFT 1GHz 2X Capacitive Color Touch Mixed Signal Oscilloscope (MSO), a high-performance test instrument used for debugging and validating electronic designs in engineering applications



Specifications

Model Number:  MSO54B/5-BW-1000

Brand:  Tektronix

Alt Part Number(s):  MSO54B/5-BW-1000

Product Type:  Signal Oscilloscope



Technical Description

Brand:  Tektronix

Model Number:  MSO54B/5-BW-1000

Series:  5 Series B

Bandwidth:  1GHz

Memory:  62.5Mpts

Analog Channels:  4

Digital Channels:  32

Display Size:  15.6" TFT Capacitive Color Touch

Display Type:  LCD TFT

Interface:  LAN / Ethernet

Vertical Resolution: 12 bit

Attenuation:  2X

Risetime:  0.4ns

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

* Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
