Overview

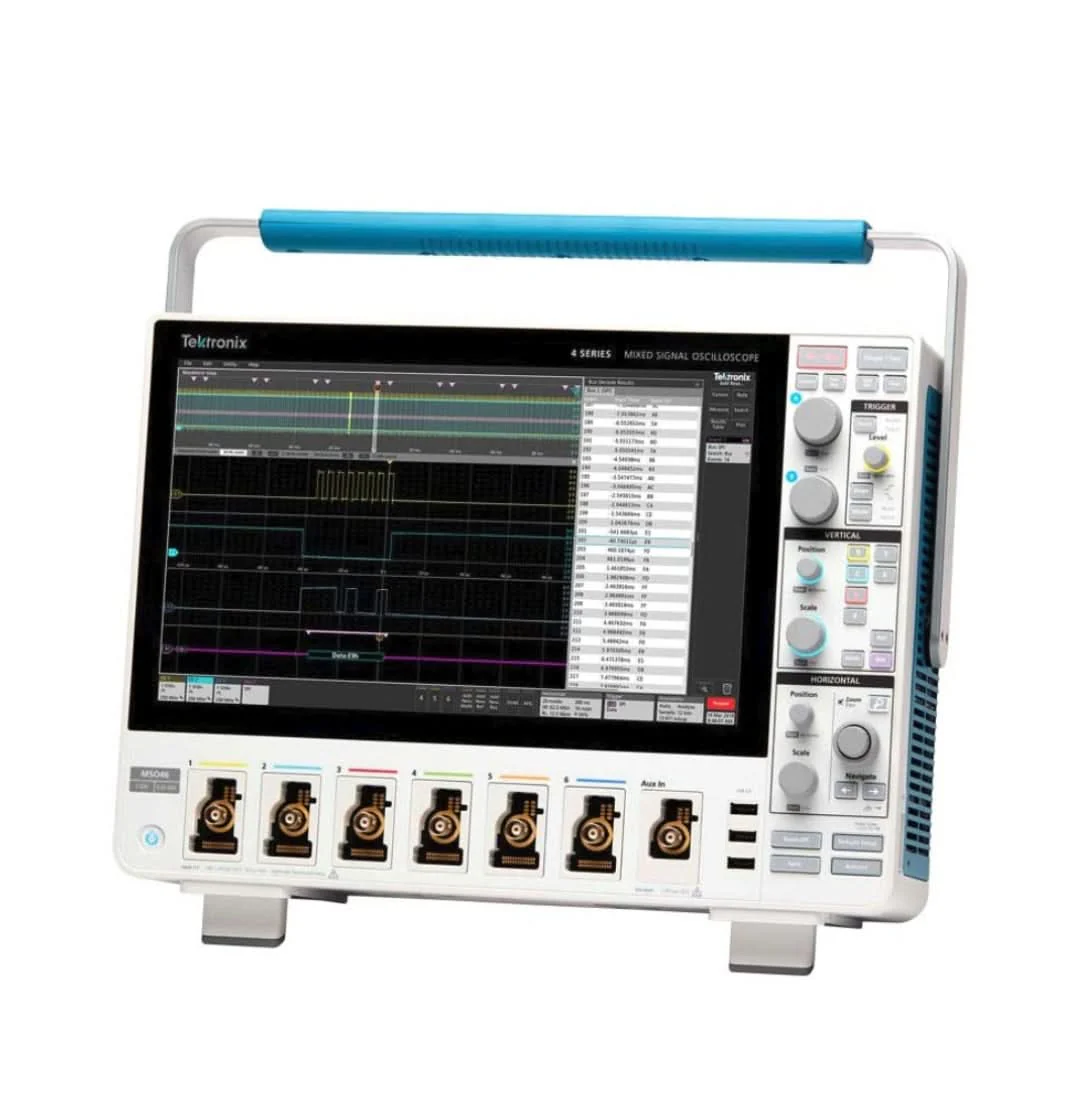

The MSO46B/4-BW-500 is a Tektronix 4 Series B 500MHz 13.3-Inch TFT Full HD 1920 x 1080 Resolution Mixed Signal Oscilloscope (MSO), a high-performance test instrument used by engineers for analyzing electronic signals



Specifications

Model Number:  MSO46B/4-BW-500

Brand:  Tektronix

Alt Part Number(s):  MSO46B/4-BW-500

Product Type:  Signal Oscilloscope



Technical Description

Brand:  Tektronix

Model Number:  MSO46B/4-BW-500

Series:  4 Series B

Bandwidth:  500MHz

Analog Channels:  6

Digital Channels:  48

Display Size:  13.3-inch TFT color

Resolution:  Full HD 1920 x 1080 Resolution

Ports:  3 x USB2 and 2 x USB3 Host, 1 USB Device, 1 Ethernet

Record Length:  31.25 Mpoints per channel

Vertical Resolution: 12 bit

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

* Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
