Overview

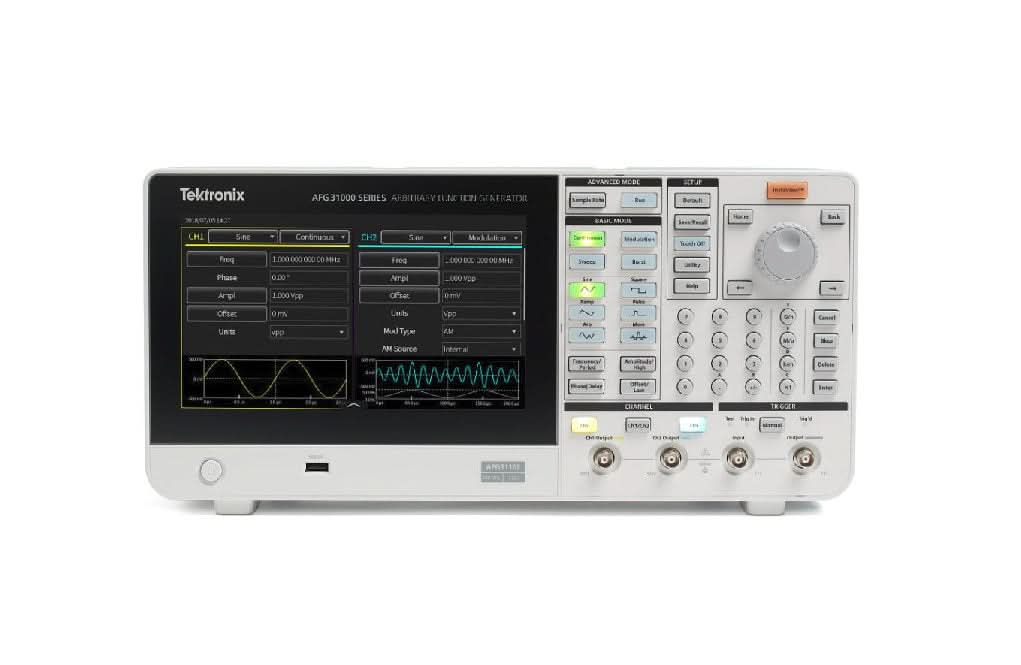

The Tektronix AFG31021 AFG1000-Series 9 GUI/Large Touch is a high-performance, single-channel Arbitrary Function Generator that offers a 25MHz bandwidth and a 250 MSa/s ACD4000B sampling rate, featuring a large touch screen and advanced real-time waveform monitoring technology.



Specifications

Model Number:  AFG31021

Brand:  Tektronix

Alt Part Number(s):  AFG31021

Product Type:  Function Generator

Technical Description

Brand:  Tektronix

Model Number:  AFG31021

Series:  AFG1000 Series

Number of Channels:  1 Channel

Memory:  16Mpts

Vertical Resolution: 14 bit

Bandwidth:  25MHz

Accessories:  ACD4000B

Display Type:  9 GUI/Large Touch

Sampling Rate:  250 MS/s

Measurement Range:  -10V

Noise Level:  -3dB

Voltage DC Range:  -5V

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

* Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
