Overview

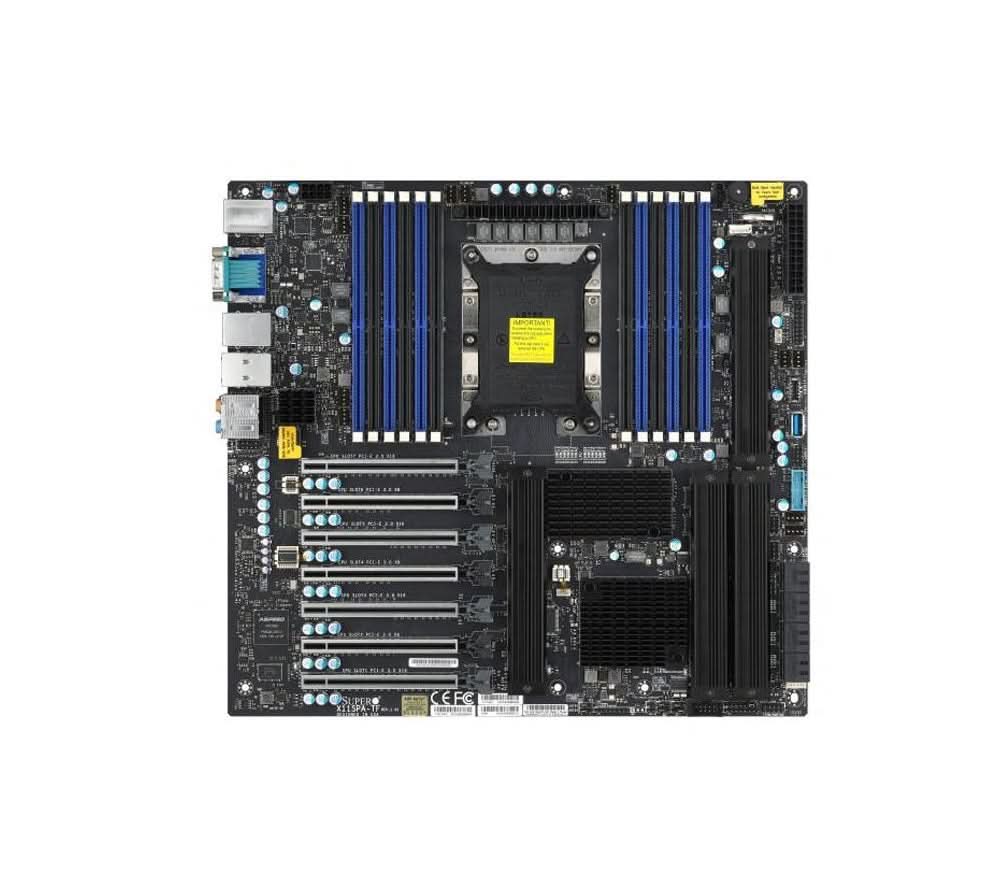

The Supermicro MBD-X11SPA-T-O is a high-end Extended-ATX (E-ATX) workstation motherboard designed for the Intel C621 chipset. It supports single-socket Intel Xeon Scalable and Xeon W-3200 series processors, making it a powerful platform for AI training, high-performance computing (HPC), and 3D rendering.



Specifications

Model Number:  MBD-X11SPA-T-O

Brand:  Supermicro

Alt Part Number(s):  MBD-X11SPA-T-O

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-X11SPA-T-O

Series:  W-3200

Processor Type:  Intel Xeon Scalable

Processor Core:  28-Cores

Processor Socket:  Socket P (LGA-3647)

Processor Generation:  2nd Gen

Chipset Type:  Intel C621

Storage Interfaces:  8 × SATA3 (6 Gbps)

Network:  10GBase-T port (Aquantia AQC107) and one 1GbE port (Intel i210-AT)

USB:  4 USB 3.1 Gen2 ports and 6 USB 3.1 Gen1 ports

Audio:  Realtek ALC888S HD Audio

RAID:  RAID 0, 1, 5, and 10

Graphics:  ASPEED AST2500 BMC

Memory Supported:   3TB

Memory Speed:  2666MHz

Memory Type:  DDR4

Memory Slots:  12 DIMM slots

Expansion Slots:  7 PCIe slots

Error Detection:  ECC

TDP:  205W

Form Factor:  E-ATX

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
