Overview

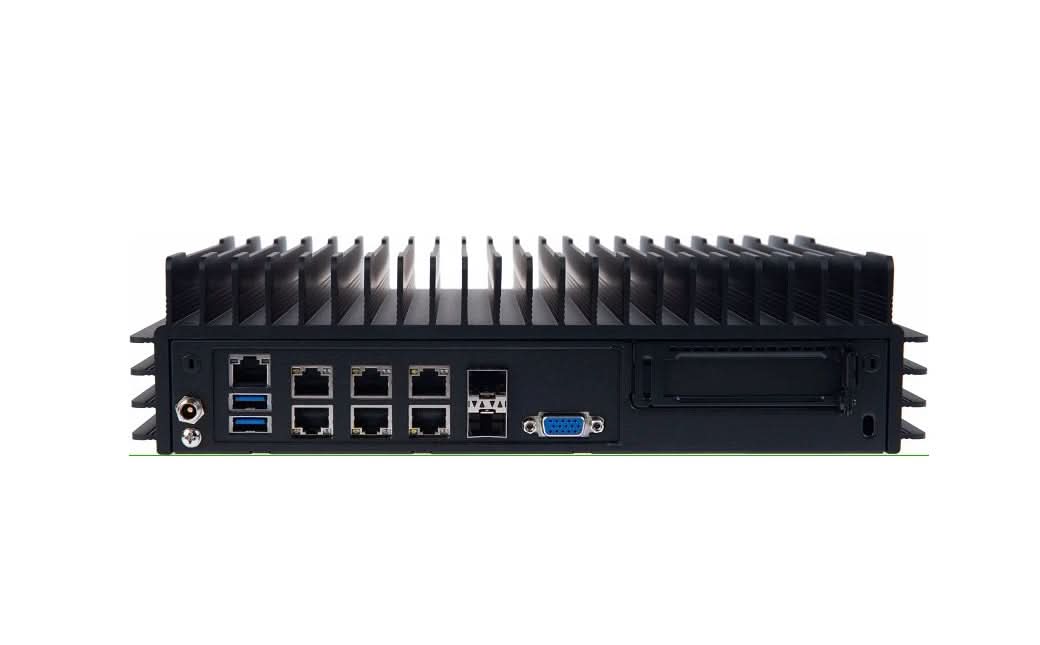

The Supermicro SuperServer SYS-E302-9D is a compact, fanless embedded system designed for IoT edge computing, industrial automation, and networking applications. It features a power-efficient Intel Xeon D processor and extensive networking capabilities, including 10GbE support.



Specifications

Model Number:  SYS-E302-9D

Brand:  Supermicro

Alt Part Number(s):  SYS-E302-9D

Product Type:  Server

Technical Description

Brand:  Supermicro

Model Number:  SYS-E302-9D

Processor Type:  Intel Xeon

Processor Model:  D-2123IT

Processor Core:  4 Cores/8 threads

Processor Speed:  2.2GHz

Processor Cache:  8MB

Processor Socket:  BGA 2518

Storage Interfaces:  2 x 10G SFP+ ports,2 x 10GBase-T ports via Intel X557,4 x 1GbE

USB:  2 USB 3.0 ports (rear) and 1 VGA port

Drive Bays:  2× 2.5″ SATA

Graphics:  ASPEED AST2500 BMC

Chassis Model:  CSE-E302iL

Memory Capacity:  256GB

Memory Supported:   512GB

Memory Type:  DDR4

Memory Slots:  4 DIMM slots

Expansion Slots:  1× PCIe 3.0 ×8

Cooling:  Entirely fanless thermal design

Power Input:  150W

TDP:  60W

Form Factor:  Compact Mini-1U
