Overview

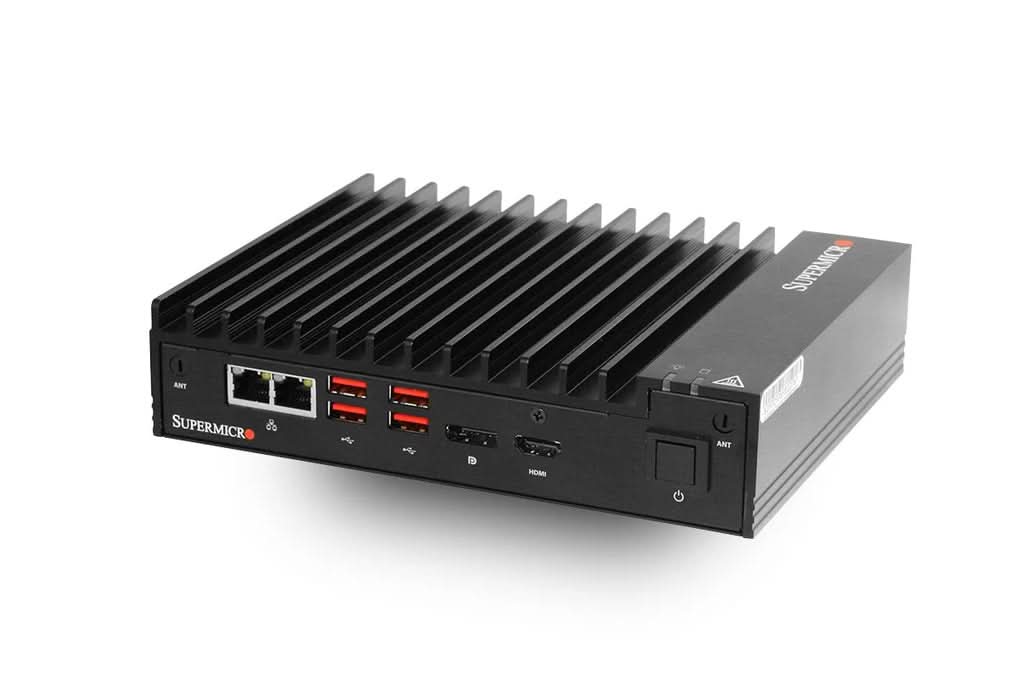

The Supermicro SuperServer SYS-E100-9W-L is a compact, fanless embedded system optimized for IoT gateways, industrial automation, and digital signage. It is built on the Super X11SWN-L-WOHS single-processor motherboard



Specifications

Model Number:  SYS-E100-9W-L

Brand:  Supermicro

Alt Part Number(s):  SYS-E100-9W-L

Product Type:  Server

Technical Description

Brand:  Supermicro

Model Number:  SYS-E100-9W-L

Processor Type:  Intel Core i3-8145UE

Processor Core:  2-Cores/4 Threads

Processor Speed:  2.2GHz (up to 3.9GHz Turbo)

Processor Socket:  FCBGA-1528

Processor Generation:  8th Gen

Network:  Dual (1GbE) ports utilizing Intel i219LM and i210IT controllers

USB Ports:  8 total ports, including 4 USB 3.1 Gen2 (Type A) and 4 USB 2.0

Display Output:  1 HDMI port and 1 DisplayPort

Graphics:  Intel UHD Graphics 620

Motherboard:  X11SWN-L-WOHS

Memory Supported:   64GB

Memory Speed:  2400MHz

Memory Type:  DDR4

Memory Slots:  2 DIMM slots

Expansion Slots:  PCIe 3.0 x4

Error Detection:  non-ECC

Cooling:  Fanless

Power Capacity:  12 V DC

TDP Support:  ~15 W

Form Factor:  3.5″ SBC

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
