Overview

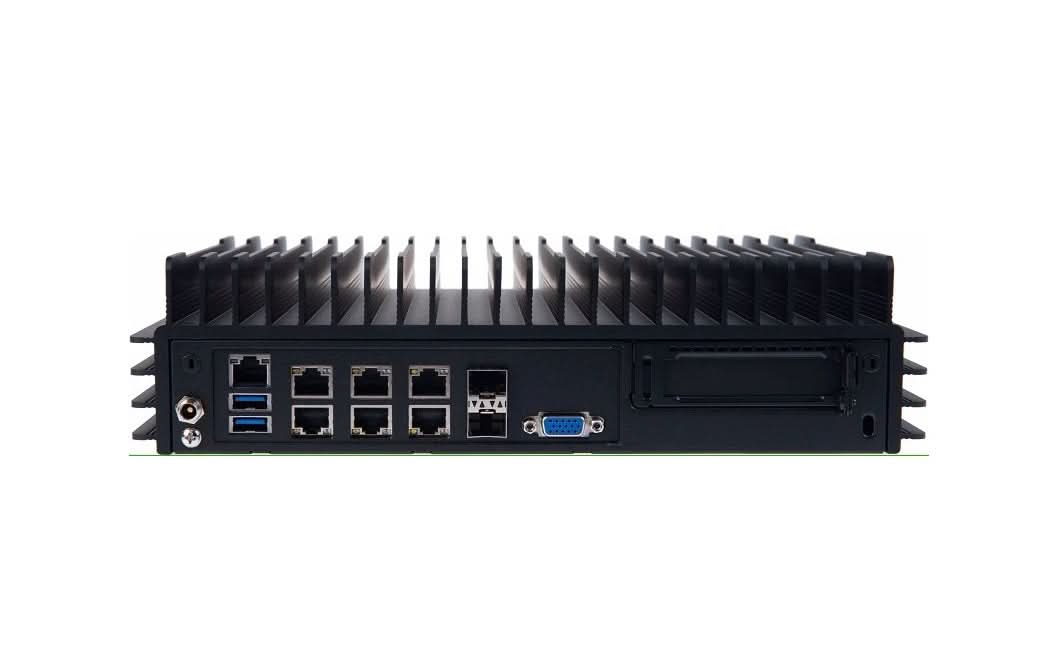

The Supermicro SuperServer SYS-E100-9W-C is a fanless, compact embedded system designed for industrial automation, digital signage, and medical expert systems. It is powered by an integrated Intel Celeron processor and features a wide operating temperature range for harsh environments.



Specifications

Model Number:  SYS-E100-9W-C

Brand:  Supermicro

Alt Part Number(s):  SYS-E100-9W-C

Product Type:  Server

Technical Description

Brand:  Supermicro

Model Number:  SYS-E100-9W-C

Processor Type:  Intel Celeron

Processor Model:  4305UE

Processor Core:  2 Cores/4 Threads

Processor Socket:  Single FCBGA-1528

Network:  Dual Gigabit Ethernet (1GbE) ports via Intel i219LM and i210IT controllers

USB Ports:  8 total ports, including 4 USB 3.1 Gen2 and 4 USB 2.0

Video Output:  1 HDMI port and 1 DisplayPort

Graphics:  Intel UHD Graphics 620

Motherboard:  Super X11SWN-C-WOHS

Memory Supported:  64GB

Memory Speed:  2400MHz

Memory Type:  DDR4

Memory Slots:  2 SO-DIMM slots

Expansion Slots:  1 × PCIe 4.0 ×16

Error Detection:  non-ECC

Cooling:  Fan-less

Power Input:  12V–24V DC

TDP:  ~15 W

Form Factor:  3.5″ SBC
