Overview

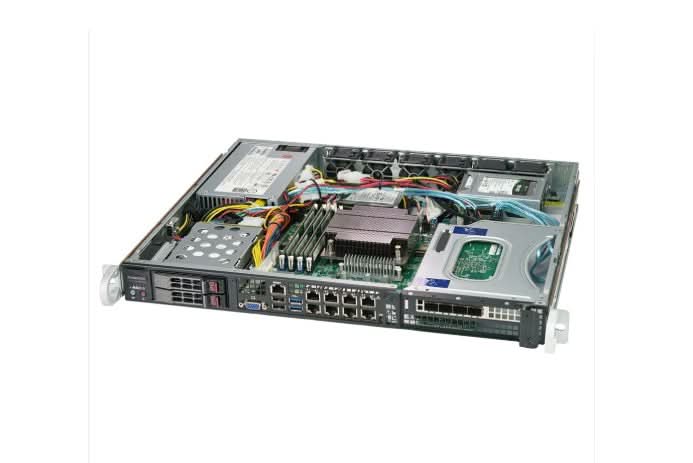

The Supermicro SuperServer SYS-1019D-14CN-FHN13TP is a high-density 1U rackmount embedded system designed for edge computing and network applications, such as C-RAN and SD-WAN. It is built on the X11SDW-14CNT-TP13F motherboard and features an integrated 14-core Intel Xeon D processor.



Specifications

Model Number:  SYS-1019D-14CN-FHN13TP

Brand:  Supermicro

Alt Part Number(s):  SYS-1019D-14CN-FHN13TP

Product Type:  Server

Technical Description

Brand:  Supermicro

Model Number:  SYS-1019D-14CN-FHN13TP

Processor Type:  Intel Xeon

Processor Model:  D-2177NT

Processor Core:  14-Cores/28 threads

Processor Socket:  FCBGA-2518

Storage Interfaces:  SATA3 (6 Gb/s)

Network:  2 x 10GBase-T (RJ45) ports and 2 x 10G SFP+ ports, 9 x (RJ45) ports

USB:  2 USB 3.0 ports (front), 1 VGA port, and 1 COM port via RJ45

Drive Bays:  2× hot-swap 2.5″SATA

RAID:  RAID 0, 1, 5, and 10

Graphics:  ASPEED AST2600 BMC

Chassis Model:  CSE-513BTS-505WB

Motherboard:  X11SDW-14CNT-TP13F

Memory Capacity:  256GB

Memory Supported:  512GB

Memory Type:  DDR4

Memory Slots:  4 DIMM slots

Expansion Slots:  2 PCIe 3.0 x16

Error Detection:  ECC

Power Supply:  500 W

TDP:  Up to 105W

Form Factor:  1U Rackmount

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
