Overview

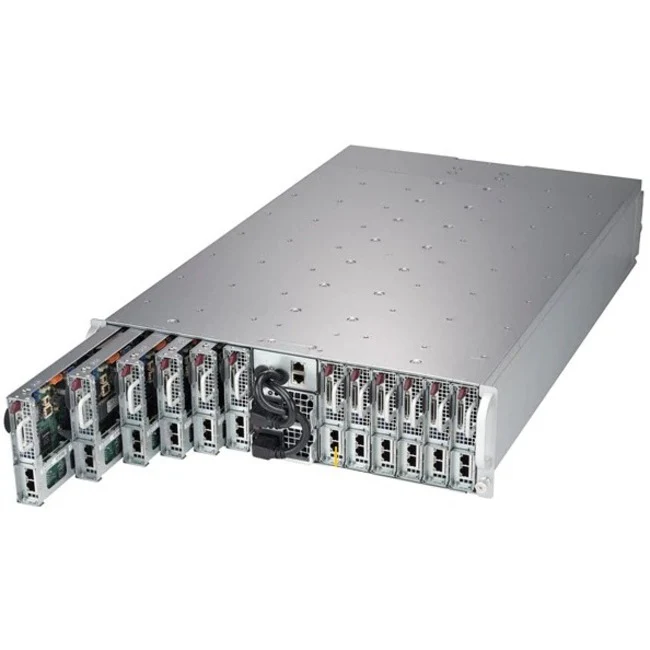

Supermicro SuperServer SYS-5039MC-H12TRF from the 3U series delivers a 12 node architecture each supporting a single Socket H4 LGA-1151 Xeon Core i3 Celeron or Pentium processor with up to 128GB DDR4-2666 memory. It features Intel C246 chipset RAID support Gigabit Ethernet PCIe x4 expansion and dual 2000W power supplies for high density and reliable rackmount deployment.



Specifications

Model Number: SYS-5039MC-H12TRF

Brand:   Supermicro

Alt Part Number(s):   SYS-5039MC-H12TRF

Product Type:  Server



Technical Description

Brand:  Supermicro

Model: SYS-5039MC-H12TRF

Number of Nodes: 12

Number of Processors Supported: 1

Processor Socket: Socket H4 LGA-1151

Processor Supported: Xeon; Core i3; Celeron; Pentium

64-bit Processing: Yes

Chipset Manufacturer: Intel

Chipset Model: C246

Maximum Memory Supported: 128 GB

Memory Technology: DDR4 SDRAM

Memory Standard: DDR4-2666/PC4-21300

Total Number of Memory Slots: 4

Controller Type: Serial ATA/600

RAID Supported: Yes

Ethernet Technology: Gigabit Ethernet

Total Number of Expansion Slots: 1

Number of PCI Express x4 Slots: 1

Number of SATA Interfaces: 2

Input Voltage: 230 V AC

Number of Power Supplies Installed: 2

Maximum Power Supply Wattage: 2000 W

Color Family: Black

Product Color: Black

Form Factor: Rack-mountable

Rack Height: 3U

Height: 5.2"

Width: 17.5"

Depth: 29.5"

Weight (Approximate): 131.99 lb



*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
