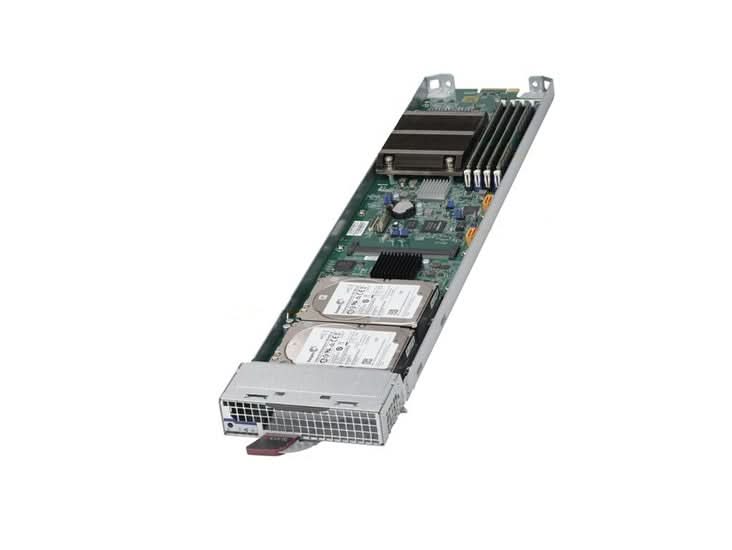

Supermicro MBI-6119G-T8HX Intel Xeon 4-Core 2.0GHz MicroBlade Server Module
Overview
The Supermicro MBI-6119G-T8HX is a high-density MicroBlade server module featuring a single independent node. It is optimized for high-performance, single-socket applications like cloud computing, video transcoding, and content delivery networks
Specifications
Model Number: MBI-6119G-T8HX
Brand: Supermicro
Alt Part Number(s): MBI-6119G-T8HX
Product Type: Blade Server
Technical Description
Brand: Supermicro
Model Number: MBI-6119G-T8HX
Processor Type: Intel Xeon E3-1578L v5
Processor Socket: FCBGA 1440
Processor Core: 4-Core
Processor Threads: 8 threads
Processor Speed: 2.0GHz
Chipset Type: Intel C236
Graphics: Integrated Intel Iris Pro (P580)
Storage Expansion: 1x 2.5" SATA3 SSD bay
Drive Interfaces: SATA3 (6 Gbps)
Networking: Dual 10 Gigabit Ethernet ports per blade
Memory Capacity: 32GB per blade
Memory Technology: DDR4-2400
Memory Speed: DDR4-2133/1866/1600MHz
Number of Memory Slots: 2 × SO-DIMM
Error Checking: ECC
Power Supply: 65W
Form Factor: MicroBlade
Height: 1.2"
Width: 4.94"
Depth: 23.2"
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
