Overview

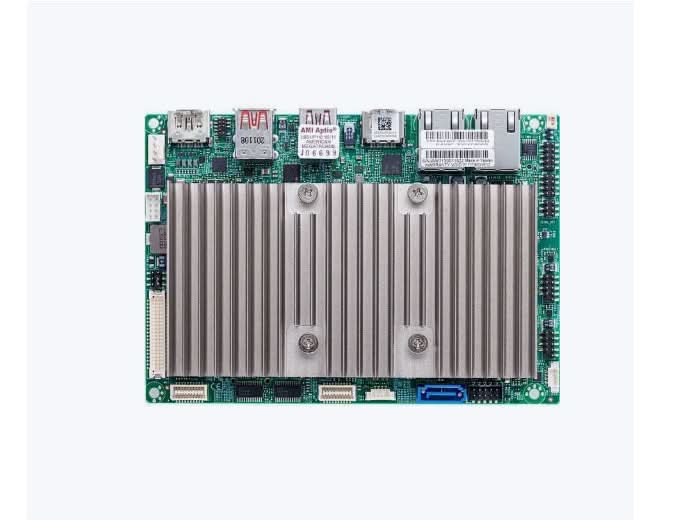

The Supermicro MBD-X12STN-E-O is a 3.5" Single Board Computer (SBC) powered by an integrated 11th Gen Intel Core i5-1145GRE processor. It is designed for compact industrial, AI, and edge computing environments, featuring a wide operating temperature range and support for up to four simultaneous 4K displays.



Specifications

Model Number:  MBD-X12STN-E-O

Brand:  Supermicro

Alt Part Number(s):  MBD-X12STN-E-O

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-X12STN-E-O

Processor Type:  Intel Core i5-1145GRE

Processor Model:  6305E

Processor Core:  4-Cores / 8 threads

Processor Cache:  8MB

Processor Generation:  11th Gen

Processor Socket:  BGA-1449

Storage:  1 × SATA III + Triple M.2 (B/E/M Keys)

Network:  2 × 2.5 GbE (Intel I225-IT)

USB:  4 USB 3.2 Gen 2 ports, plus 4 USB 2.0 ports

Video:  Displays via 2 HDMI, 1 DisplayPort 1.4, and 1 dual-channel 48-bit LVDS header

Graphics:  Intel Iris Xe integrated graphics

Memory Supported:   64GB

Memory Type:  DDR4

Memory Slots:  2 SO-DIMM

Error Detection:  non-ECC

TDP:  28W

Power Input:  12V–24V DC

Form Factor:  3.5" SBC

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
