Overview

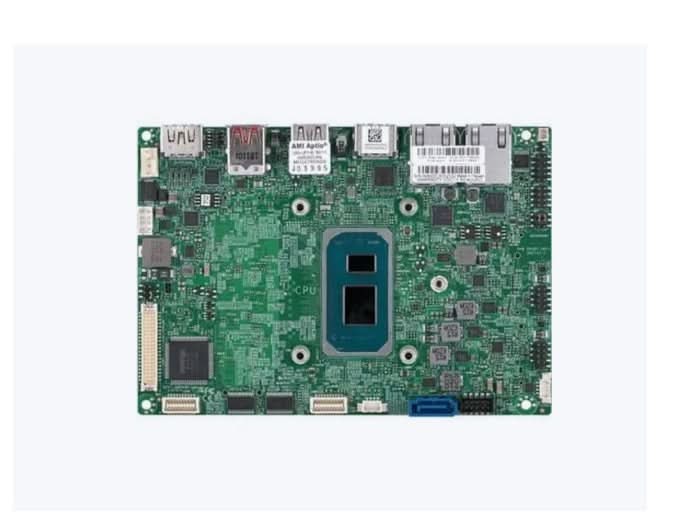

The Supermicro MBD-X12STN-C-WOHS-O is a 3.5" Single Board Computer (SBC) designed for embedded and industrial applications. It is powered by an integrated Intel Celeron 6305E processor and is specifically distinguished by being shipped without a heatsink (WOHS), allowing for flexible custom thermal designs.



Specifications

Model Number:  MBD-X12STN-C-WOHS-O

Brand:  Supermicro

Alt Part Number(s):  MBD-X12STN-C-WOHS-O

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-X12STN-C-WOHS-O

Processor Type:  Intel Celeron

Processor Model:  6305E

Processor Core:  2-Cores/2 threads

Processor Cache:  4 MB

Processor Socket:  BGA‑1449

Storage Interfaces:  1 × SATA3 (6 Gb/s) port

Network:  Dual 2.5 GbE Ethernet (Intel I225-IT)

USB:  USB 3.2 Gen2 ports and USB2

RAID:  RAID 0, 1, 5, and 10

Graphics:  Intel UHD Graphics

Memory Supported:  64GB

Memory Type:  DDR4

Memory Slots:  8 SO-DIMM

Expansion Slots:  1 × PCIe 4.0 ×16

Error Detection:  ECC

TDP:  15W

Power Input:  12-24 V DC

Form Factor:  3.5" SBC
