Overview

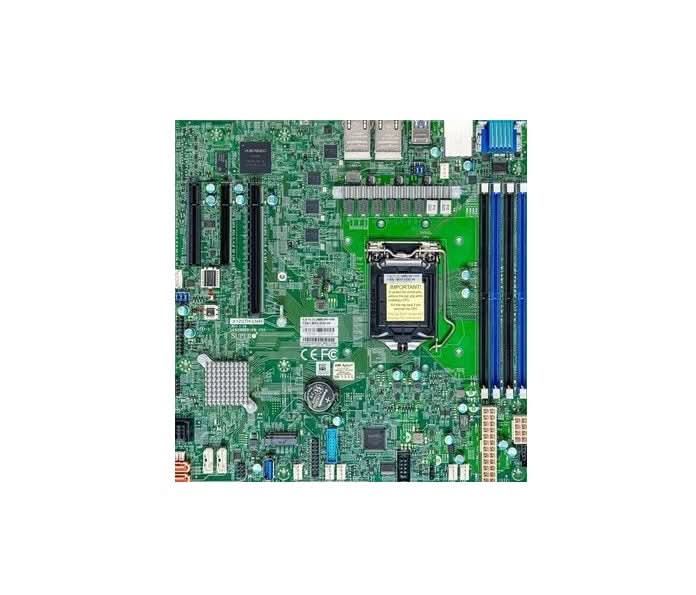

The Supermicro MBD-X12STH-F-O is a Micro-ATX server motherboard from the X12 generation, utilizing the Intel C256 chipset. The "-O" suffix indicates retail packaging, which typically includes the motherboard, I/O shield, and essential cables in an individual box.



Specifications

Model Number:  MBD-X12STH-F-O

Brand:  Supermicro

Alt Part Number(s):  MBD-X12STH-F-O

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-X12STH-F-O

Series:  E-2300

Processor Type:  Intel Xeon

Processor Socket:  LGA 1200 (Socket H5)

Processor Generation:  10th Gen

Chipset Type:  Intel C256

Storage Interfaces:  8 SATA3 (6Gbps) ports

Network:  4x 1GbE utilizing the Intel I210 controllers

RAID:  RAID 0, 1, 5, and 10

Graphics:  ASPEED AST2600 BMC

Memory Supported:  128GB

Memory Type:  DDR4

Memory Slots:  4 DIMM slots

Expansion Slots:  1 PCIe 4.0 x16 slot,1 PCIe 4.0 x4 (in an x8 slot),1 PCIe 3.0 x4 (in an x8 slot)

Error Detection:  ECC

TDP:  95W

Form Factor:  Micro-ATX
