Overview

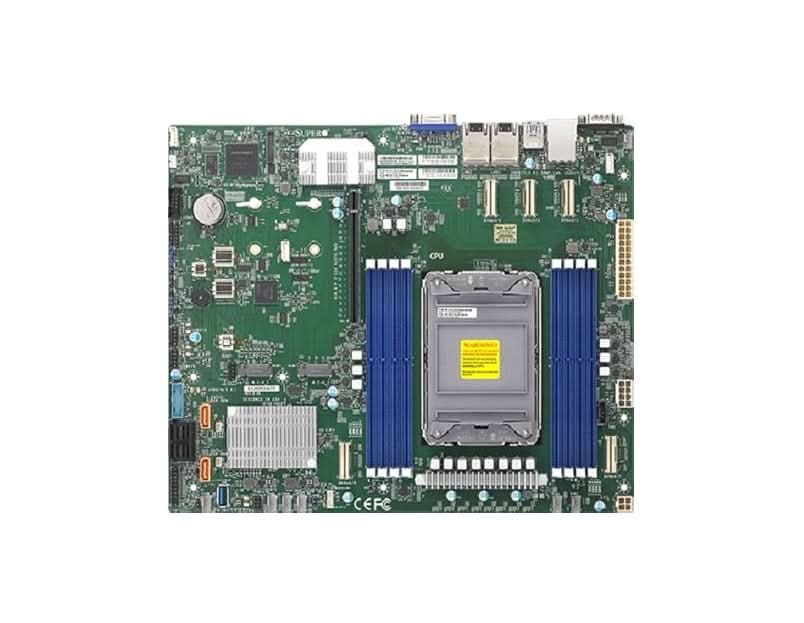

The Supermicro MBD-X12SPZ-SPLN6F-O is a high-performance Micro-ATX workstation/server motherboard featuring an Intel C621A chipset. It is designed for single-socket 3rd Gen Intel Xeon Scalable processors, offering significant computational power with up to 40 cores and advanced networking through dual 25GbE and quad 1GbE ports.



Specifications

Model Number:  MBD-X12SPZ-SPLN6F-O

Brand:  Supermicro

Alt Part Number(s):  MBD-X12SPZ-SPLN6F-O

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-X12SPZ-SPLN6F-O

Processor Type:  Intel Xeon Scalable

Processor Generation:  3rd Gen

Processor Core:  40-Cores

Processor Socket:  LGA-4189

Storage Interfaces:  SATA3 + OCuLink RAID + M.2 + NVMe SlimSAS

Network Interfaces:  Quad 1 GbE + Dual 25 GbE + IPMI LAN

Graphics:  ASPEED AST2600 BMC

Chipset:  Intel C621A

Memory Supported:  2TB

Memory Type:  DDR4

Memory Slots:  8 DIMM

Expansion Slots:  2 × PCIe 4.0 ×16 + NVMe SlimSAS

Error Detection:  ECC

Fan Headers:  6 × 4-pin PWM fan

Input Power:  12 V DC

TDP:  270W

Form Factor:  Micro-ATX

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
