Overview

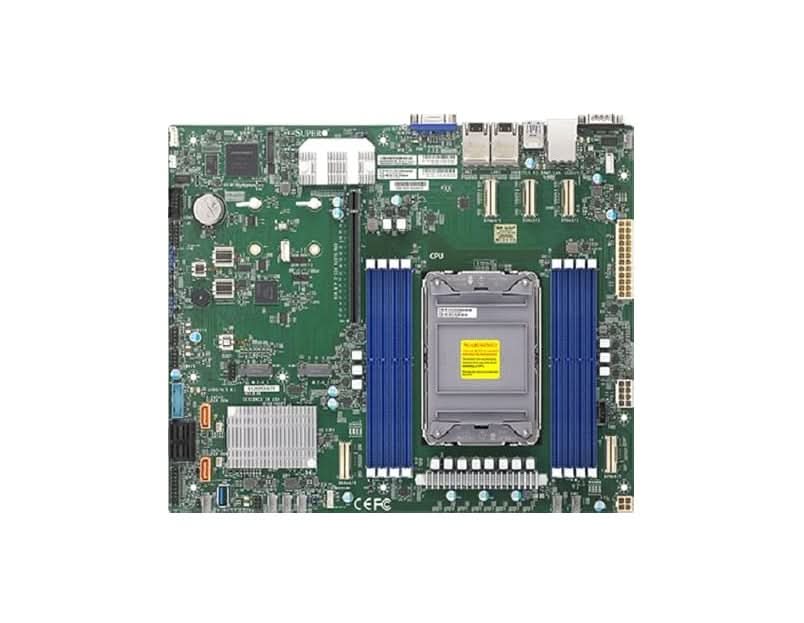

The Supermicro MBD-X12SPZ-LN4F-B is a high-performance Micro-ATX server motherboard built on the Intel C621A chipset. It supports a single 3rd Gen Intel Xeon Scalable processor (LGA-4189) and is designed for cloud, data centre, and storage applications requiring a compact footprint.



Specifications

Model Number:  MBD-X12SPZ-LN4F-B

Brand:  Supermicro

Alt Part Number(s):  MBD-X12SPZ-LN4F-B

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-X12SPZ-LN4F-B

Processor Type:  Intel Xeon Scalable

Processor Core:  40-Cores

Processor Socket:  LGA-4189

Processor Generation:  3rd Gen

Chipset:  Intel C621A

Storage Interfaces:  6 SATA3 + 4 via OCuLink (RAID), 2 SlimSAS NVMe ports, 1 M.2

Network:  Quad 1 GbE (Intel I350-AM4)

Graphics:  ASPEED AST2600 BMC

Memory Supported:  2TB

Memory Type:  DDR4

Memory Slots:  8 DIMM

Expansion Slots:  2 × PCIe 4.0 ×16 + internal NVMe ports

Error Detection:  ECC

Input Power:  12 V DC

Power Capacity:  270W

Form Factor:  Micro-ATX

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
