Overview

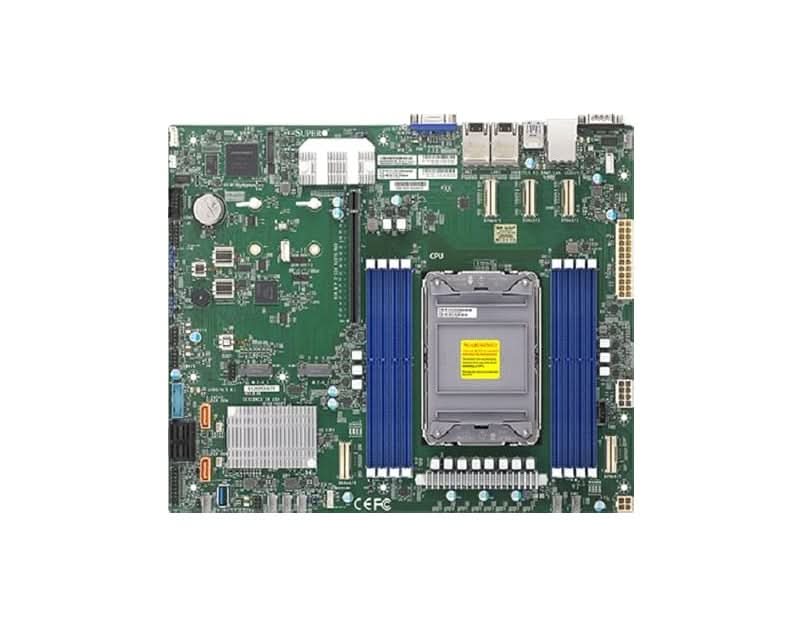

The Supermicro MBD-X12SPM-TF-B is a high-performance Micro-ATX server motherboard built on the Intel C621A chipset. It supports a single 3rd Gen Intel Xeon Scalable processor (LGA-4189) with a TDP of up to 270W and features dual 10GBase-T networking.



Specifications

Model Number:  MBD-X12SPM-TF-B

Brand:  Supermicro

Alt Part Number(s):  MBD-X12SPM-TF-B

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-X12SPM-TF-B

Processor Type:  Intel Xeon Scalable

Processor Generation:  3rd Gen

Processor Core:  40-Cores

Processor Socket:  LGA-4189

Storage Interfaces:  10 SATA3 + M.2 + NVMe SlimSAS

Network Interfaces:  Dual 10GBase-T LAN (Intel X550) + IPMI

USB Ports:  5 USB 3.2 Gen1 and 6 USB 2.0

RAID:  RAID 0, 1, 5, and 10

Graphics:  ASPEED AST2600 BMC

Chipset:  Intel C621A

Memory Supported:  2TB

Memory Type:  DDR4

Memory Slots:  8 DIMM

Expansion Slots:  2× PCIe 4.0 ×16 + 1× ×8 + NVMe SlimSAS

Error Detection:  ECC

Fan Headers:  6 × 4-pin PWM fan

Input Power:  12 V DC

TDP:  270W

Form Factor:  Micro-ATX

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
