Overview

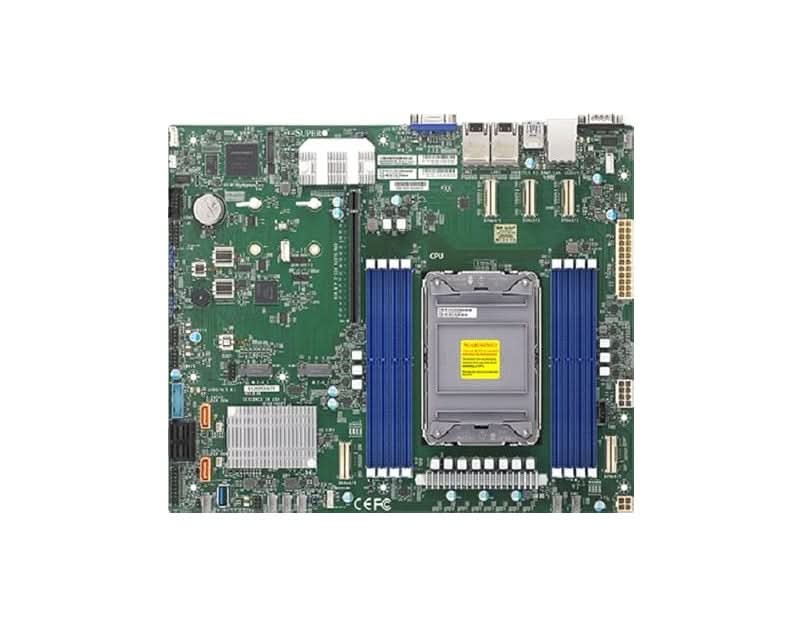

The Supermicro MBD-X12SPM-LN6TF-O is a high-performance Micro-ATX motherboard featuring the Intel C621A chipset. It is designed for single-socket 3rd Gen Intel Xeon Scalable processors, specifically targeting server applications that require high-density networking with a total of six integrated LAN ports.



Specifications

Model Number:  MBD-X12SPM-LN6TF-O

Brand:  Supermicro

Alt Part Number(s):  MBD-X12SPM-LN6TF-O

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-X12SPM-LN6TF-O

Processor Type:  Intel Xeon Scalable

Processor Generation:  3rd Gen

Processor Core:  40-Cores

Processor Socket:  LGA-4189

Storage Interfaces:  10 × SATA3, 1 × M.2, 4 × NVMe via SlimSAS

Network Interfaces:  2 × 10GBase-T + 4 × 1GbE + IPMI LAN

Graphics:  ASPEED AST2600 BMC

Chipset:  Intel C621A

Memory Supported:  2TB

Memory Type:  DDR4

Memory Slots:  8 DIMM

Expansion Slots:  2 × PCIe 4.0 ×16 + 1 × PCIe 4.0 ×8

Error Detection:  ECC

Input Power:  12 V DC

TDP:  270W

Form Factor:  Micro-ATX
