Overview

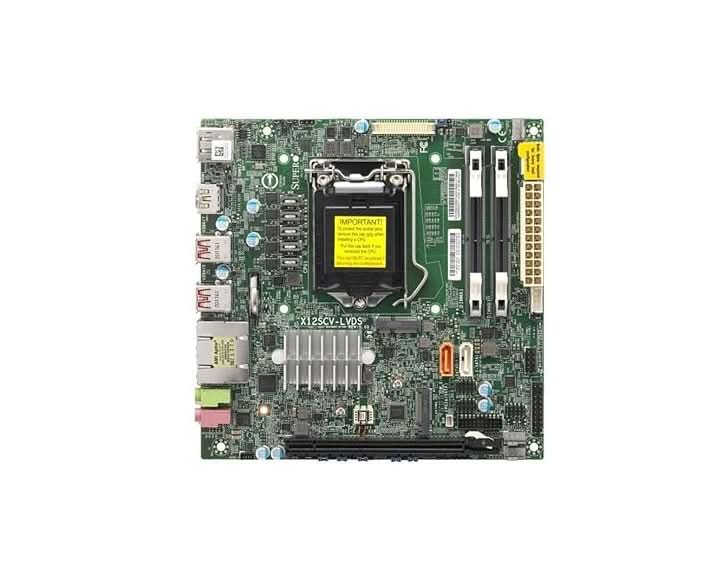

The Supermicro MBD-X12SCV-LVDS-O is a Mini-ITX motherboard based on the Intel W480E chipset, designed for embedded applications requiring multiple independent displays. It supports 11th and 10th Gen Intel Core and Xeon W-1200 series processors with a TDP up to 65W



Specifications

Model Number:  MBD-X12SCV-LVDS-O

Brand:  Supermicro

Alt Part Number(s):  MBD-X12SCV-LVDS-O

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-X12SCV-LVDS-O

Series:  W-1200

Processor Type:  Intel Xeon

Processor Socket:  LGA‑1200

Processor Cache:  2MB

Processor Generation:  11th/10th Gen

Chipset Type:  Intel W480E

Storage Interfaces:  2 SATA3 (6Gbps) ports

Network:  Dual LAN with Intel PHY I219LM and Intel I210-AT controllers

USB:  4 USB 3.2 Gen 2 ports (rear) and 4 USB 2.0 ports

Audio:  Realtek ALC888S

Graphics:  Intel UHD Graphics

Memory Supported:  64GB

Memory Type:  DDR4

Memory Slots:  2 SO-DIMM

Expansion Slots:  1 × PCIe 3.0 x16

TDP:  65W

Power Input:  +12V DC

Form Factor:  Mini-ITX
